XRP-4310DB4, 128CH SSM Recording Server

XRP-4310DB4, 128CH SSM Recording Server

XRP-4310DB4 2U Rack Mountable server with 128 Channel SSM recording software on it allows 16 enterprise HDDs to be installed.

Supports RAID1, RAID5, RAID6, RAID10, RAID50, the disks of the recorder are hot swappable. Thanks to the failover (HA server) structure of SSM, it can work as redundant.

Intel Core i7-8700T processor, 400Mbps recording speed, 2 HDMI outputs, redundant power supply, Windows 10 IoT Enterprise operating system built on SSD are among the features of the hardware.

It offers the ability to search the data produced by the next generation Artificial Intelligence cameras. It can receive alarms generated by artificial intelligence-based cameras such as face, appearance, face mask, vehicle and warn security personnel.

Video loss, camera events (sensor, motion detection, passing, entering, exiting, appearing, disappearing, tampering, tracking, face detection, voice detection, license plate recognition, Bestshot), artificial intelligence events (face, appearance, face mask, vehicle) are the alarm generation triggers of the logger.

Main Features

• Intel Core i7-8700T
• 128Ch Preinstalled SSM Video Management & Recording Software
• Up to 32MP Camera supported
• Server Clustering Support - Max. 132CH
• Recording Bandwidth: Max. 400Mbps
• Playback/Search Bandwidth: Max. 150Mbps
• 16 Bay Support – Enterprise HDD
• Hot Swap Support - Volume 2ea
• 2 HDMI port Support
• RAID 1 / 5 / 6 / 10 / 50 Support
• Redundant Power Support
• Windows 10 IoT Enterprise LTSC on M.2 SSD
• AI Event (Face, Appearance, Face mask, Vehicle) Trigger

About Wisenet SSM VMS

Total Security Solution with Wisenet SSM v2.10

Hanwha Techwin’s self-developed VMS(Video Management Software), Wisenet SSM is an ideal choice for an integrated security solution that maximizes the operation efficiency. It provides seamless and stable integration to meet requirements for mid-large scale sites.

• Centralized Management
• Distributed Computing Architecture
• Extended Scalability
• Guaranteed Reliability
• Flexible System Integration
• Efficient Monitoring
• Powerful Search Engine

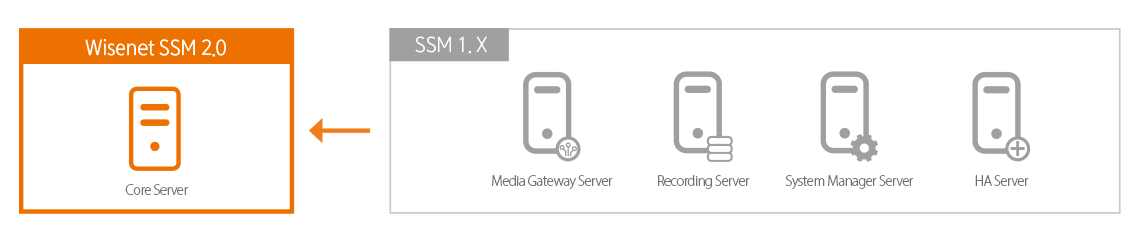

Integration into a single core server

In SSM v2.10, basic servers such as MG, RS, SM, HA have been put in a single “Recording Server”. In addition, these “Recording Servers” can be clustered together providing higher level of reliability. From SSM v2.10, a group of clustered recording servers will be named “Domain” and in the same domain, recording servers will synchronize data.

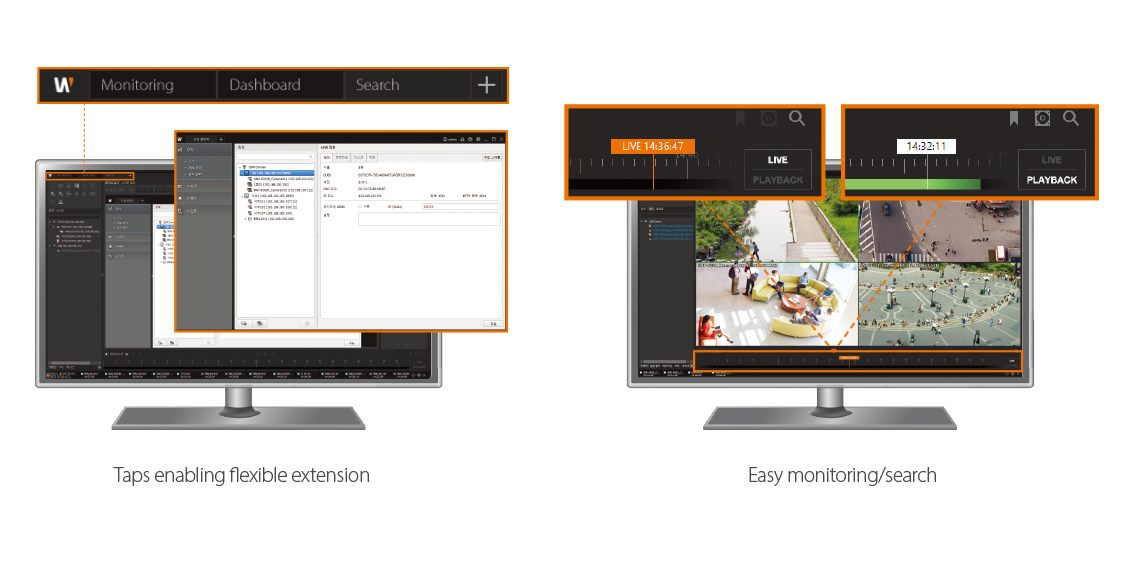

User friendly, intuitive UI design

Tap-based window enables flexible extension, with intuitive screen offering easy transition of monitoring/search for customers.

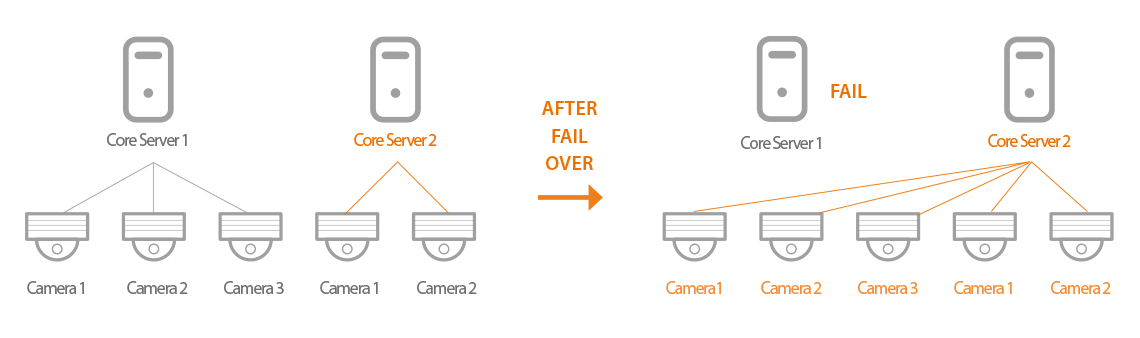

Active-Active Failover

The dual servers running year-round enable uninterrupted recording during network disruptions.

Dashboard for real-time system monitoring

Wisenet SSM Dashboard provides the current information of all servers and devices within the system via web browser (it is provided as a plug-in free web client). The overall information of system is shown including server and device status, network bandwidth and HDD usage. It also gives system event statistics for efficient management. All information retrieved in SSM Dashboard could be exported as a documented report.

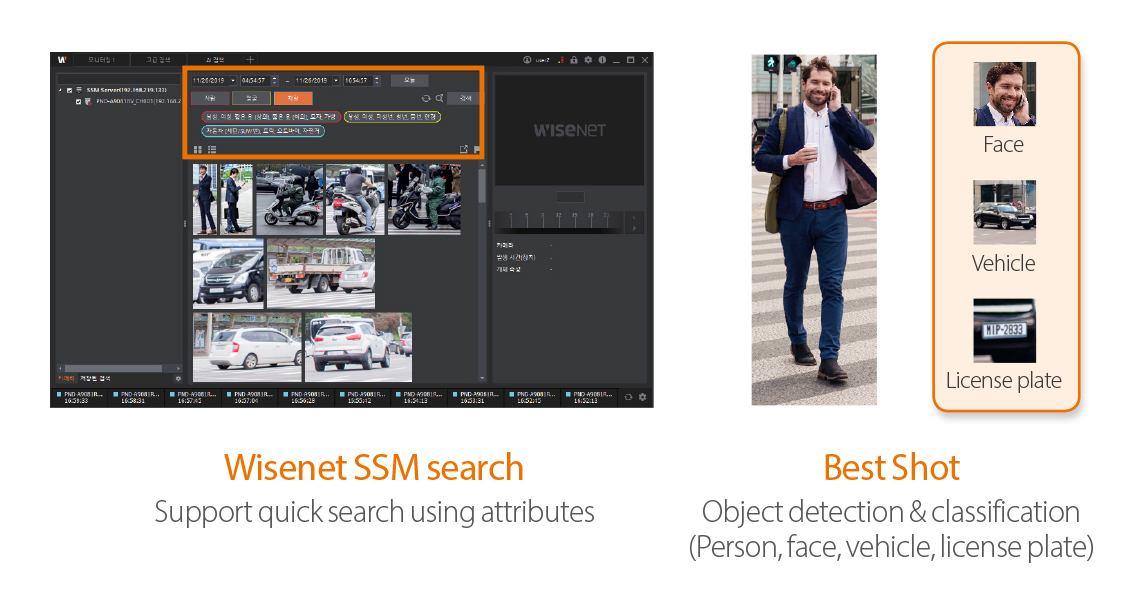

AI Video Search

System operators can utilize SSM’s ‘AI video search’ feature to easily search specific events in the video by designating distinctive attributes of objects such as persons, faces, and vehicles. If a user searches specific attributes such as red motorcycle or a man wearing short pants, the feature finds the best still cuts (Best Shot) of the classified objects in the video. Best Shots can be used as forensic data for accident investigations, playing back video that includes Best Shots.
