Generally, automatic license plate recognition systems are managed through a computer or recorder. The images taken from the cameras are transmitted to the computer or recorder. The license plate recognition algorithm, which is run on a computer or recorder, tries to convert the license plate number into text. Thanks to the textualized data, the system can be automated by creating tables such as license plates, blacklist plates. In addition, transition times can be searched in the table or database. The success rate of the operation exceeds 90%. However, adding components such as cameras, computers, etc. makes the system difficult to operate.

Hanwha Techwin

WISENET

Offers Serverless Automatic Number Plate Recognition System

Thanks to the powerful processors inside, Hanwha Techwin's XNO-L6080R and XNO-6080R model cameras are equipped with automatic license plate recognition software.

BENEFITS:

Since the license plate recognition process is done by the camera itself, there is no need to operate a computer or server continuously to operate it.

White list (allowed vehicles) and blacklist (not allowed vehicles) are created from the camera interface. Thus, vehicles that are allowed to pass are recognized automatically.

By using the outputs on the camera, barriers or doors can be opened.

Transition records on the camera can be viewed on phones, tablets or computers over the network.



The system can be configured up to 1 master and 3 slave cameras.

Both the master and slave camera can open barrier or gate.

It can work on apartment complex with up to 4 vehicle passages without the need for any external data processing device. All that needs to be done is a network where the cameras can communicate with each other..

More than one system can be installed in places with more vehicle passages. Configurations can be transferred between cameras.

A system supports 4 entry only if the entries are to be made under the authority of the cameras. Loop detector or photocell can be used to trigger the barrier / door while vehicles are exiting.

Different arrangements such as 3 entries -1 exit, 2 entries -2 exits can be made if both entries and exits are desired to be made under camera authority.

FUNCTIONS

SERVERLESS NUMBER PLATE RECOGNITION

No server or cloud subscription required

Easy to configure

Convenient user interface

Separate secured login to manage the ANPR events

High number plate recognition accuracy (>95%)

Unified ANPR events list

Unified white and blacklists

Up to 1000 number plates

Barrier management – automatic and manual

Perfect for car parks and residential areas

INDUSTRY-RECOGNISED INNOVATION

By delivering all the benefits of ANPR without incurring the cost of a server to run it on, Serverless ANPR offers an affordable edge-based solution for car parks, petrol stations and small residential estates with multiple entrances/exits, barriers or roadways.

It is therefore not surprising that this Intelligent Traffic Management solution has already been recognised with two industry awards. The readers of GIT SECURITY, one of Europe’s leading security trade publications, have chosen Serverless ANPR in October as the winner of the Security Management and Security Solutions category in the GIT SECURITY Awards 2021. This excellent news follows on from the recent announcement that the solution, which is ideal for small site management, was appointed runner-up in the Business Intelligence Solutions category of the 2020 Benchmark Innovation Awards.

EASY to CONFIGURE

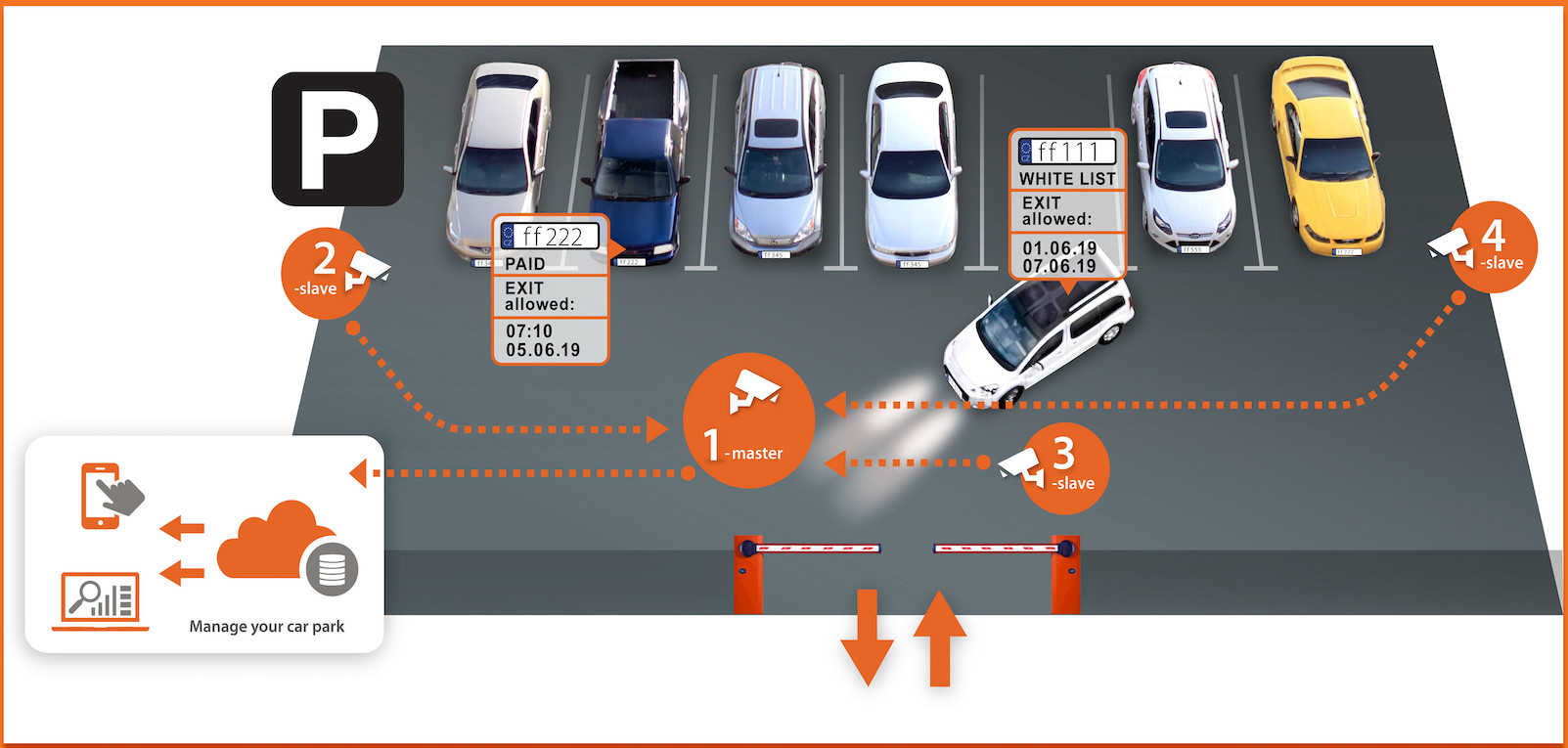

Easy to configure camera-to-camera IP communication technology enables up to 4 Wisenet ANPR cameras, 1 master camera and 3 slaves, to simultaneously capture and transmit data to a convenient user interface. Taking advantage of a powerful chipset, Serverless ANPR is able to capture the number plates of vehicles moving at up to 50 km/h with 95% accuracy.

It is designed to offer an affordable edge-based solution for car parks, petrol stations and small residential estates with multiple entrances/exits, barriers or roadways. With Serverless ANPR, you can automatically control the movement of up to 1,000 white listed cars through barriers via camera relay outputs.

An API is available to system integrators to provide the opportunity to integrate with third-party software and systems.
