XNO-6120R/RW, 2M Network IR Bullet Camera with RoadWatch ANPR

XNO-6120R/RW, 2M Network IR Bullet Camera with RoadWatch ANPR

XNO-6120R/RW - 2MP IR 12x Bullet with 32GB SD Card, pre-installed and licensed RoadWatch ANPR application

Main Features

• Max. 2Megapixel (1920 x 1080) resolution
• 5.2 ~ 62.4mm (Optical 12X) Optical Lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec Supported, Multiple streaming
• Day & Night (ICR), WDR (150dB), Defog
• IVA, Fog Detection, Sound Classification, Tampering
• Motion Detection, Handover
• SD / SDHC / SDXC 2 Slot (Max. 512GB)
• Hallway View, WiseStreamII Support
• IR Viewable Length 70m (229.66ft)

KEY BENEFITS with Road Watch ANPR

• All-in-one solution with ANPR and direction detection, pre-installed and licensed
• Edge-based negating need for server
• Ideal for city traffic surveillance
• Access control and licence plate list management for stop and go installations such as car parks and toll roads
• Search smarter and quicker with multiple inputs
• Choice of bullet and dome camera models and accessories to suit many installation types
• Web-based user friendly interface, no need for a dedicated client software
• Statistical insights into road usage by day and week
• Easy installation with ANPR Setup Wizard

KEY FEATURES with Road Watch ANPR

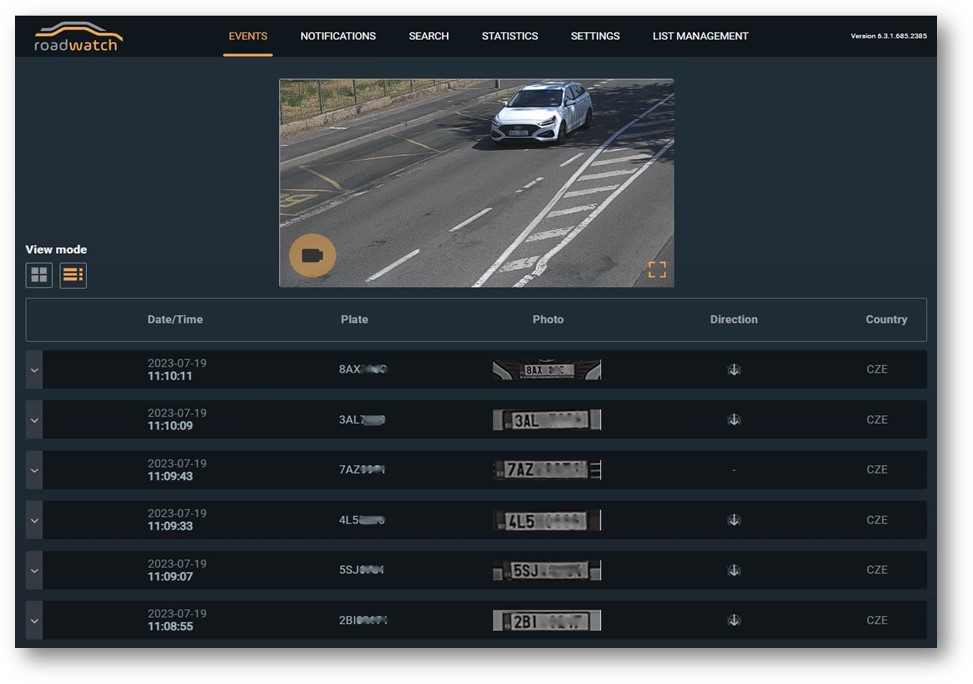

RoadWatch Application:

• Edge based ANPR on X Series Cameras
• Ideal for city traffic surveillance
• 1 Lane with maximum speed of 90km/h(55mph) – model dependent, see below table
• 95% recognition accuracy
• Recognition of 42 European Countries
• Event store of up to 100,000 (WN7) and 1,000 (WN5)
• Send full frame or plate crop only
• Modern UI (Based on Road AI)
• Direction Detection
• 2 Detection Zones Support
• List Management
• Barrier Trigger

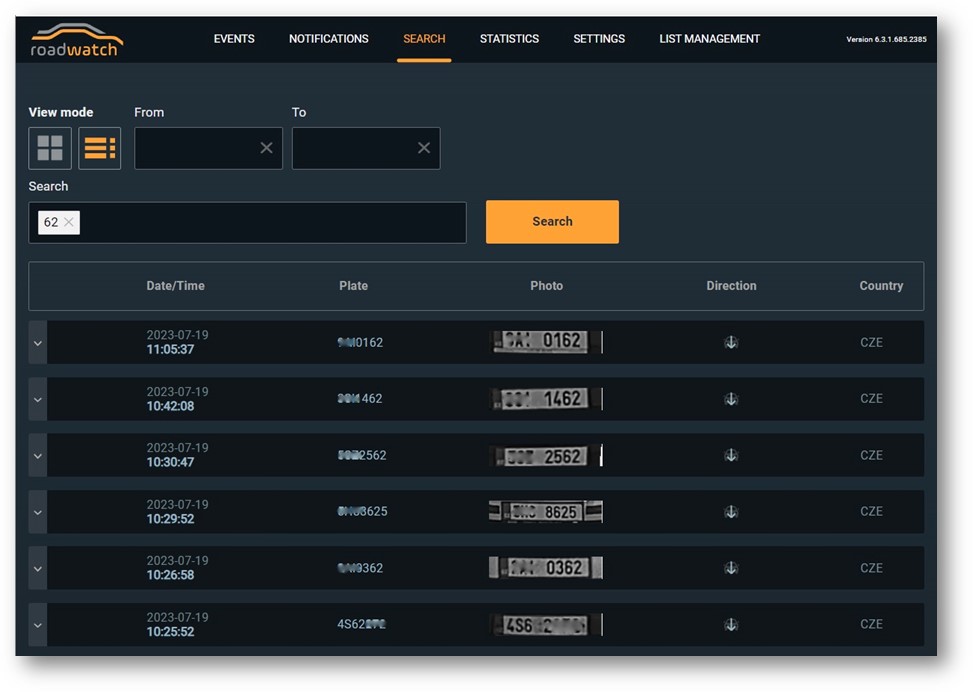

• Smart Search (full/partial plate, country, date and a combination)
• Search Export in to Excel format
• Statistics Widget (data by day and week)

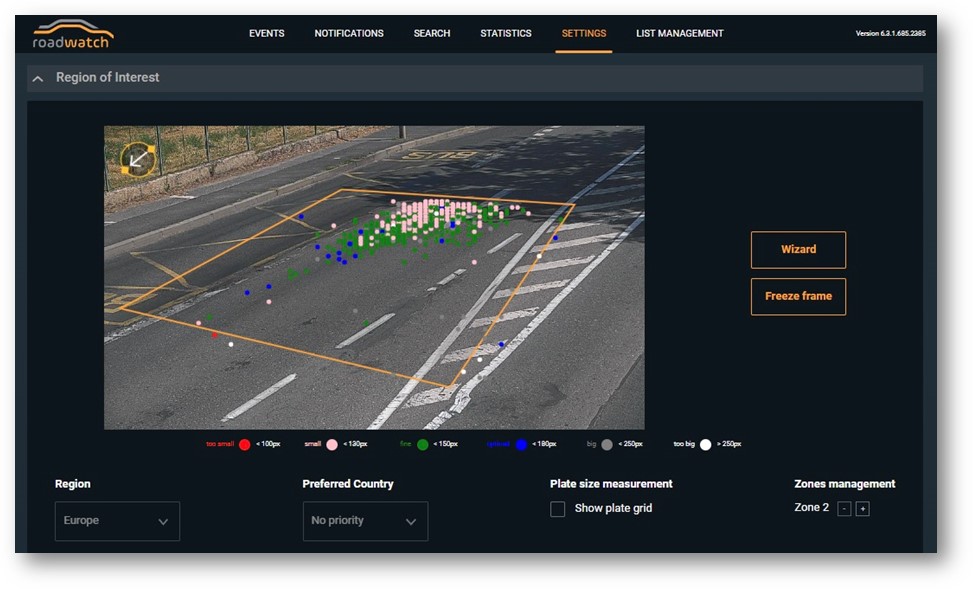

• Setup Tools - Wizard, Freeze Frame, Plate Angle & Size
• Settings Export/Import and database backup

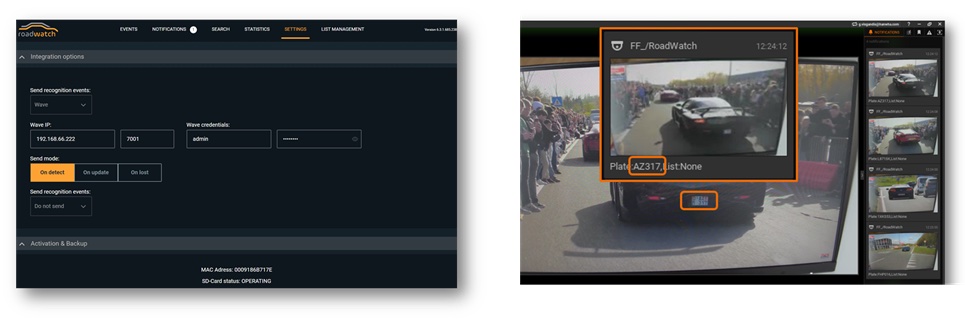

• Integration with WAVE VMS, SSM VMS, JSON & UTMC protocols

MAJOR BENEFITS

• Easy installation with combined housing compared to cameras fitted with housing
• Clear and vivid images for better forensic identification with the world's best Wide Dynamic Range
• Sharp and stable video even when mounted on a pole thanks to the Digital Image Stabilization mechanism
• Stores video data on local memory cards for flexible video recording, even during an inflexible network connection
• Allows early detection of risks or hazards with advanced video and audio analysis, licensed and unlicensed
• Better deterrence and event management with two-way voice communication from the camera

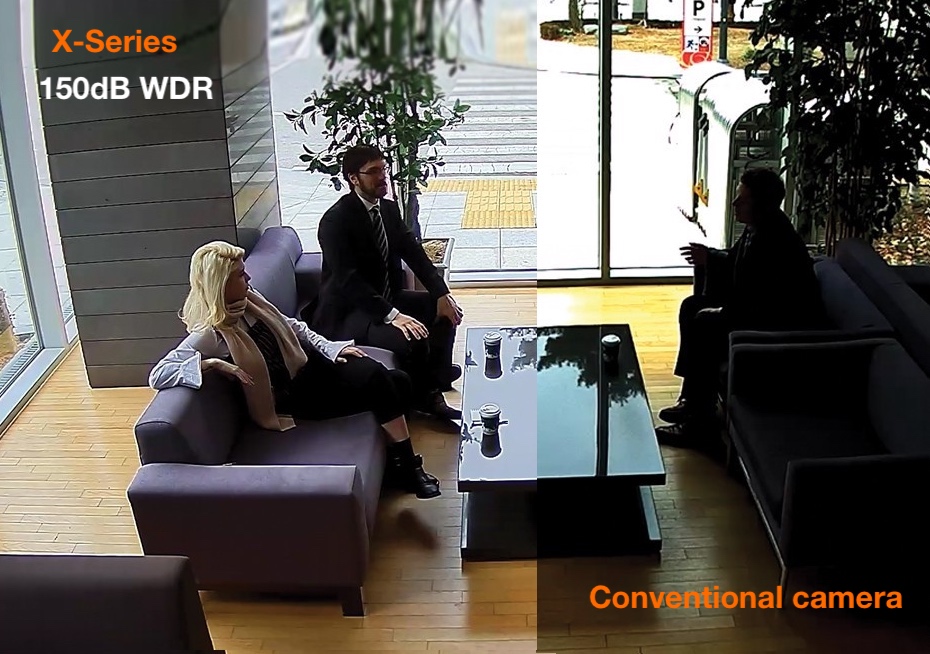

BEST WDR IN THE CLASS: 150dB

While traditional WDR captures images by taking 2 frames at different exposures, Wisenet X series cameras use 4 frame capture at different exposure levels to create a unified image. With the development of state-of-the-art WDR technology, Wisenet X series cameras create a new class while producing clearer and more vibrant images than traditional WDR cameras.

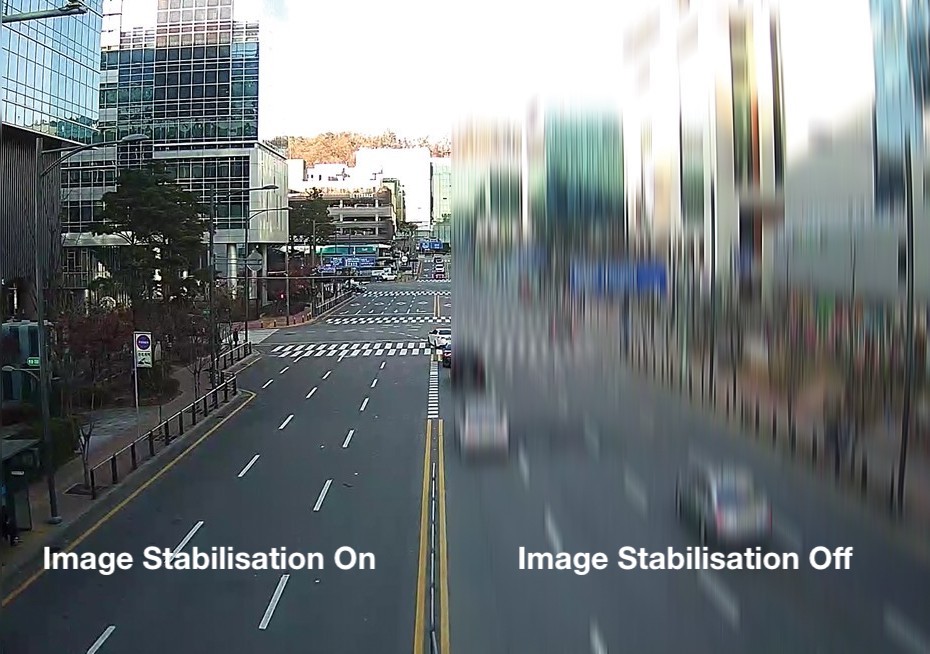

PICTURE FIXING FUNCTION WITH JIROSCOPE

Advances in Hanwha's image stabilization technology reduce motion blur caused by wind or vibration. A gyroscopic sensor and image stabilization (DIS) technology has been specifically designed and manufactured for the Wisenet X series cameras selected to produce sharpand stable images.

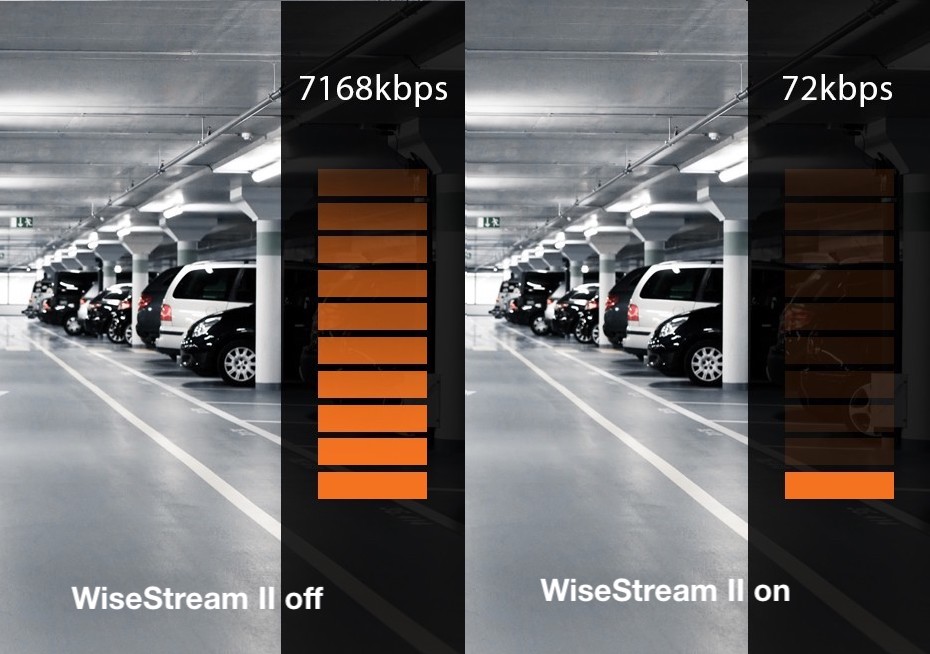

COMPRESSION TECHNOLOGY WITH WISESTREAM II

Using the WiseStream II, Hanwha Techwin's video compression technology, the Wisenet X series reduces data by 99% compared to the previous WiseStream version when combined with H.265 compression. System configuration and operating costs have been greatly reduced while maintaining the same resolution and high quality.

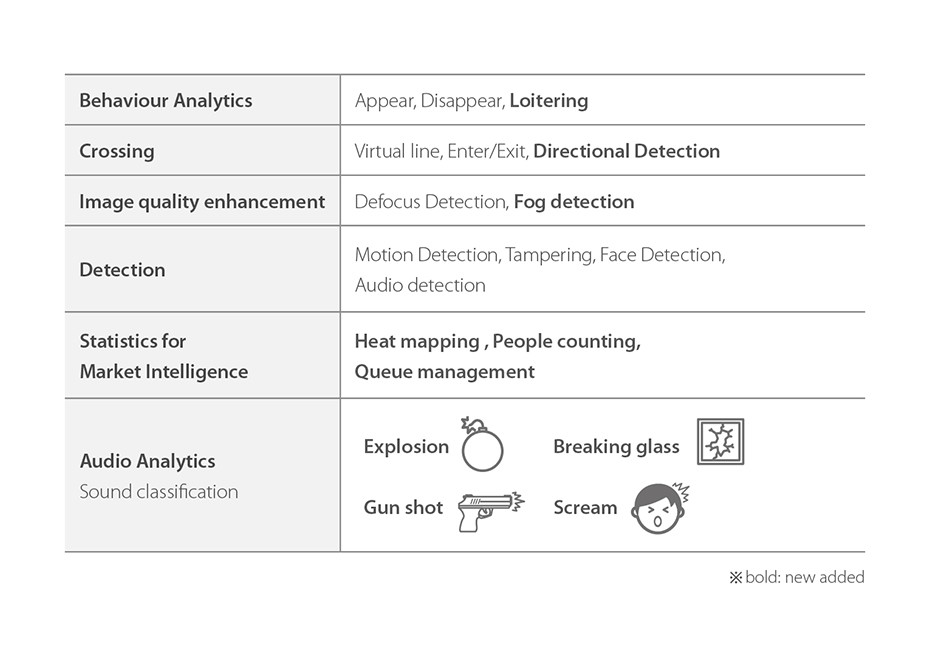

IMPROVED VIDEO ANALYSIS AND SOUND CLASSIFICATION

The Wisenet X series offers a variety of new, exclusive video and audio analytics that provide advanced monitoring solutions and market intelligence
