TNV-C8034RM, T AI 5MP IR Mobile Camera
- Stock Status: Shipping in 4-6 Weeks
- Brand: WISENET
- Model: TNV-C8034RM
- Weight: 466.00g
- Dimensions: 106.00mm x 105.00mm x 55.00mm
- SKU: TNV-C8034RM
- HS CODE: 8525809190
- MPN: TNV-C8034RM
TNV-C8034RM, T AI 5MP IR Mobile Camera
TNV-C8034RM is the ideal camera for vehicles thanks to its 5MP resolution, infrared illumination, AI-enriched functions and M12 Connector. The hanging distance of the camera is only 55m. This makes TNV-C8034RM the ideal camera for narrow spaces such as ships, trains, buses.
Main Features:
- Max. 5MP resolution
- 6.0 mm fixed lens
- Color: 0.03Lux(F1.6, 1/30sec), BW: 0.003Lux(F1.6, 1/30sec, 30IRE)
- Maximum 30fps@5MP (H.265/H.264)
- IR viewable length 30m (98.42ft)
- Hard-coated dome bubble,
- EIS, Shock detection, Heater, Built-in Mic
- H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
- Analytics events based on AI engine (NPU)
- EN50155 compliance
- IP66, IK10
- PoE: Max 7.2W, M12 connector
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

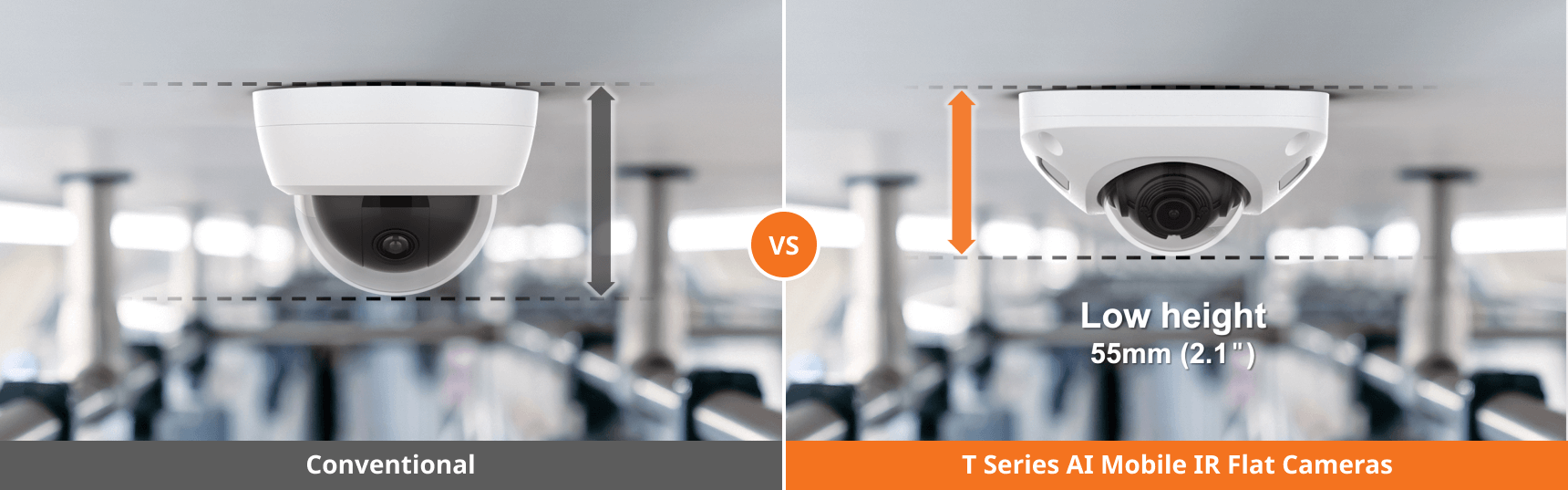

Flat Camera
The smaller form factor minimizes visual obstructions, ensuring a clear field of view. It is specifically designed for non-instructive and efficient installation in vehicles, even in confined spaces or areas within limited headroom.
T Series AI Mobile Cameras Fixed Lens Expansion
Conventional Q/X series come in 4mm lens only. The new T series AI Mobile cameras offer a wider range of lens options, including 3mm and 6mm. This flexibility allows for greater customization, catering to diverse installation needs and ensuring optimal performance in various environments.
Quick Automatic Exposure Adjustments
When objects are positioned close to the camera, images are more likely to become saturated or unclear due to excessive light exposure. However, with the T series AI mobile cameras, the automatic IR (Infrared) feature ensures optimal performance in low light conditions. When IR is activated, the camera’s advanced AE(Automative Exposure) control system quickly adjusts the gain, preventing image saturation and maintaining clarity, even in challenging lighting environments.
IR Anti-Reflection Solution
In environments with low ceilings, such as buses or trains, debris can easily accumulate on the dome-bubble of the camera. This buildup can lead to IR reflection when the IR features is activated, resulting in distorted or unclear images. To prevent this issue and ensure high-quality image capture, the T series AI mobile cameras are equipped with the TNV IR positioned outside the dome-bubble. This innovated design eliminates the risk of IR reflection, providing a clearer, more accurate image in confined spaces.
Certificate
EMC, Environment
TNV-C8014RM/C8034RM meet multiple certifications for the railway environment. Certifications include EN50155, IEC/EN61373, EN45545 as well as Railway/Vehicle Application EN50121-4, EN50121-3-2, JIS E 5006, IEC62236-3-2, IEC62236-4, JIS E 4031, EN50498.
