TNS-9060IBC, Dual Sensor BCR Camera

TNS-9060IBC, Dual Sensor BCR Camera

A first for logistics

The Barcode Reader Camera utilises accurate barcode recognition, for multiple parcels in one frame, and tracking. AI-powered barcode label detection on the monochrome channel, including for high-speed conveyors, enables operators to find labels efficiently and with ease. The solution also includes WiseBCR, a pre-installed barcode application that supports real-time barcode information and history.

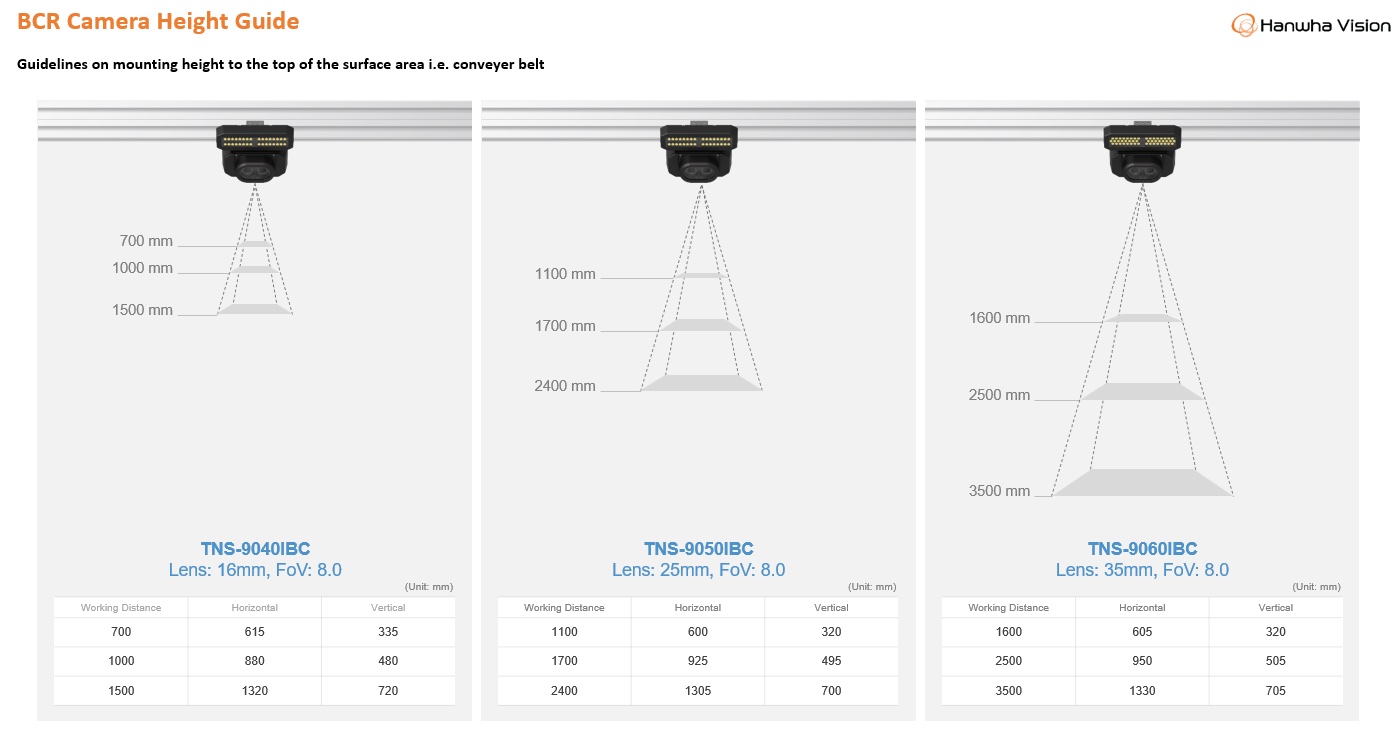

The sensors for barcode recognition and video monitoring offer 4K resolution for clear imagery. The 16, 25 or 35mm lens provides a wide field of view that suits a variety of logistics environments. In addition, the global shutter function, available on both channels, captures distortion-free images of high-speed moving objects such as parcels on conveyor belts.

As a single device, the unit reduces installation and maintenance costs. In contrast, conventional systems require barcode readers and video surveillance cameras to be installed as separate systems. As a result, the Barcode Reader Camera boosts operator efficiency and incident investigation speed as managers can check location, time and footage details of parcels and events in a single system instead of using separate systems. Furthermore, the device is highly durable with protection against dust, shock and vibration thanks to IP66/67 and IK10 ratings and M12 connectors.

The complete logistics solution

The Barcode Reader Camera forms the foundation of a comprehensive logistics solution, in combination with Hanwha Vision software and hardware solutions. It seamlessly integrates with Hanwha Vision’s innovative Vision Logistics Tracking Software (VLTS), a platform that provides full overview of operations. In addition, packing video management, part of VLTS, integrates third-party handheld scanners making it a useful tool for fulfilment centres.

Through the system, logistics managers are empowered to achieve new levels of productivity, cost-efficiency and safety while reducing damage and theft.

Key Features

• Dual Global Sensor for Barcode Reading and Video Monitoring
• MONO 4K 1” + COLOR 4K 1”
• 35mm Fixed (Wide FoV)
• AI barcode location search
• Track barcodes on high speed conveyor belt moving at 2m/s(6.5ft/s)
• 1D Code is available (Code128 / Code39 / Code93 / Codabar /
• Interleaved 2 of 5 / UPC / EAN)
• Reinforced durability
• IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
• Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
• EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C

Key Benefits

• All-in-one logistics solution with barcode recognition and video capture in a single device.
• Mono and colour sensors are integrated into the camera to efficiently track packages, and accurately scan & read barcodes.
• By eliminating manual scanning errors, the system increases production speed and reduces costly errors, improving overall workflow and output.
• Combining barcode reading and video surveillance provides a complete overview of conveyor activities and sites, enhancing worker safety and operational security.
• The system’s ability to read barcodes from multiple orientations, coupled with large data storage capacity for thousands of alphanumeric characters, offers high flexibility and efficiency in complex workflows.
• Real-time tracking supports better inventory management, compliance, and traceability, to reduce shipping errors, returns, and ultimately boosting customer satisfaction.

Features

• Dual-Sensor Barcode Reading and Video Monitoring - MONO 4K 1” + COLOR 4K 1” - 35mm machine vision lens - Removable 32 LED module - Max. 15/18/20fps@4K MONO/COLOR each sensor
• AI Technology - Pre-installed WiseBCR Open App - Track barcodes on high speed conveyor belt moving at 2 m/s per meter - 1D Code support: Code128 / Code39 / Code93 / Codabar / Interleaved 2 of 5 / UPC / EAN
• Reinforced Durability - IP67, IK10, M12 8pin Ethernet connect, Humidity control with AIR vent - EN 60068-2-6 (vibration resistance), EN 60068-2-27 (shock resistance)

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

BARCODES AND VIDEO ARE PROVIDED IN REAL-TIME FROM ONE CAMERA

Dual Lens BCR Camera

Barcode reading cameras, fixed mount

Accurate barcode recognition, even on high-speed conveyors.

Logistics automation offers greater reliability and reduced mis-delivery as well as increased parcel capacity and optimized resources. Combining barcode data and videos provides efficient parcel tracking and management.

Integration with High-resolution video

Combining video surveillance with barcode-based logistics systems enables users to track the entire logistics process, preventing parcel incidents such as loss, damage, etc.
