TNF-9010, 12MP sensor Fisheye Camera - For parking guidance
- Stock Status: Shipping in 4-6 Weeks
- Brand: WISENET
- Model: TNF-9010
- Weight: 1,280.00g
- Dimensions: 158.00mm x 158.00mm x 80.50mm
- SKU: TNF-9010
- HS CODE: 8525809190
- MPN: TNF-9010
TNF-9010, 12MP sensor Fisheye Camera - For parking guidance
It is important to know where the empty parking space is in places where many vehicles are parked, such as shopping malls, large parking lots, airports. To overcome this problem, sensor-based applications are used today.
The artificial intelligence-based TNF-9010 fisheye network camera produced by Hanwha Techwin can simultaneously detect when 16 parking spaces are empty or occupied. This information can be viewed through the video management software.
Business have to invest in both sensor-based parking guidance systems and monitor parking areas with cameras. In car parks equipped with TNF-9010, you do not need to pay 2 separate fees for camera system and car park orientation. TNF-9010 model cameras used for parking lot surveillance can perform both tasks at the same time.

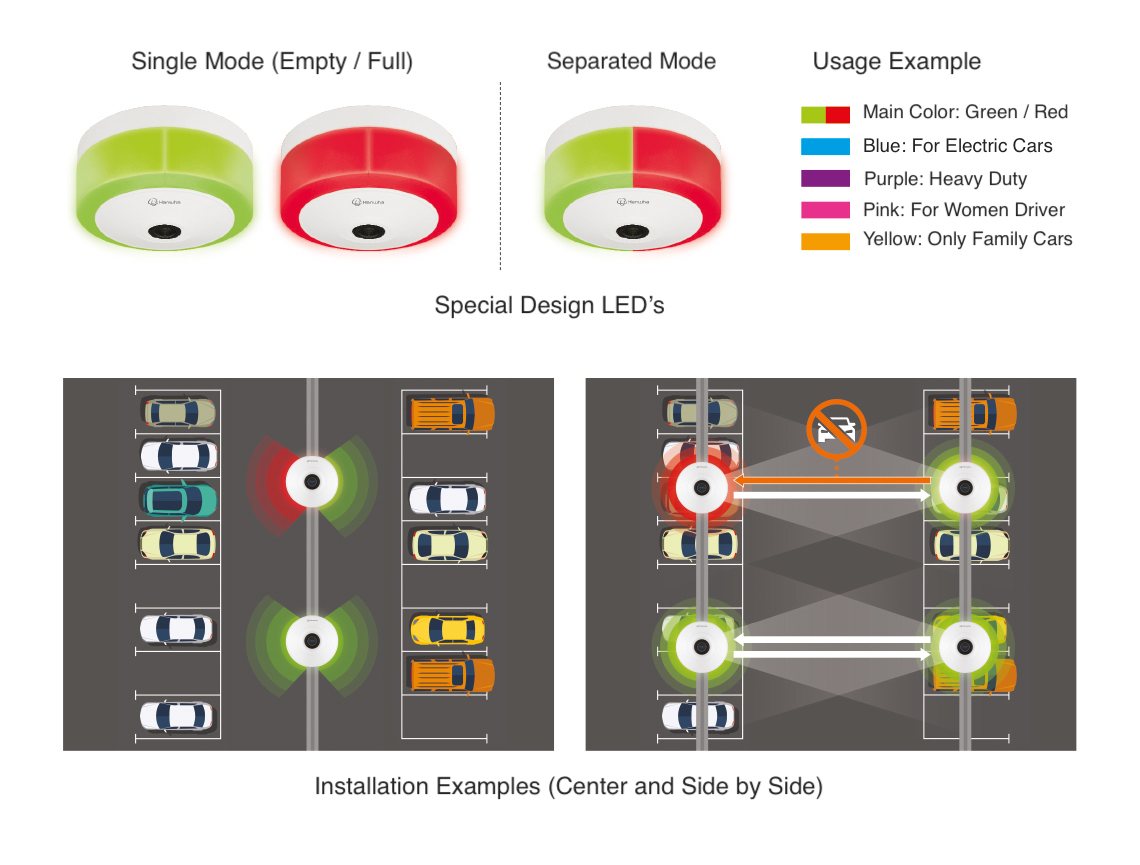

The light of the empty side is turned green on the built-in LEDs on the camera, allowing drivers to easily find the empty parking space. Thanks to the special LED design on the camera, businesses can separate parking spaces and offer privileges according to certain people or groups or vehicle types.
E.g;
- Green: Space Available
- Red: No Spaces
- Blue: For Electric Vehicles Only
- Purple: For Heavy Vehicles
- Pink: For Women Drivers Only
- Yellow: For Family Vehicles only
- Skyblue: For Disabled Vehicles Only
Main Features:
- Up to 30fps @ 3,008 x 3,008 resolution
- Stereographic type lens enhances images on the edges

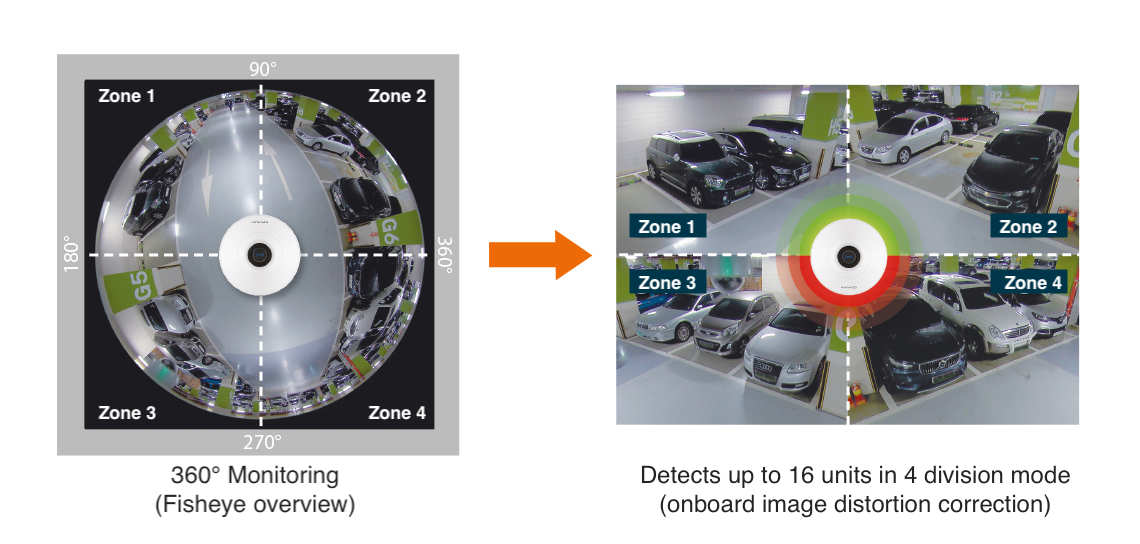

- 360° monitoring with onboard dewarping
- AI based parking detection identifies up to 16 lots
- Various LED colors & single/split mode
- Central/side raceway installations
- Defocus/audio detection and tampering
- Integrated to emergency alerts with alarm & audio I/O
Classification | |
Product Type | Camera |
Operation Type | Network (IP) |
Production Series | T Series |
Camera Specifications | |
Resolution (Megapixels) | 12MP |
Camera Type | Fisheye Type |
Power Option | 12VDC PoE |
Shutter Speed (fps) | 30 |
Outdoor? | No |
Day and Night Function | True Day Night |
Extra Function | For parking guidance |
Camera Lens Type | 1.08mm 360° Fixed lens |
D.O.R.I (EN62676-4 ) | |
Detect | 34.9m |
Observe | 13.9m |
Recognize | 7m |
Identify | 3.5m |
