SX800, Long Range Surveillance Camera

SX800, Long Range Surveillance Camera

Main Features

• 40x Optical Zoom  AF Lens (20~800mm)
• 1/1.8" CMOS
• 2MP, 1080p Resolution
• Auto, Manual (Aperture Range: F4-F16)
• 0.00015 lux (F1.2) / 0.0017 lux (F4.0) Color, 0,0001lux (F1.2) / 0,0011lux (F4.0) Black and White

• Visible Light Cut Filter
• HDMI, HD-SDI,  Composite (BNC) Video Output
• WDR: Wide Dynamic Range
• Optical Image Stabilization
• Audio Input/Output
• ONVIF Profile S
• DC12V, 9,5W
• 139x156x410mm
• 6,4kg

Features

Long Range Surveillance

The SX800 is equipped with a high-performance long range FUJINON 40x lens capable of covering focal length from 20mm to 800mm. It is complemented with 1.25 x digital zoom to achieve long-range surveillance equivalent to 1000m in focal length.

High performance image stabilization

The camera includes a newly-developed optical image stabilization system developed by Fujifilm through a project backed by the full use of the optical and mechanical engineering technology Fujifilm acquired through long years of involvement in the development of products including lenses for broadcasting and interchangeable lenses for digital cameras. As this new product can compensate for correction angle of ±0.22 degrees at any focal distance from 20mm to 800mm while also achieving world-leading image stabilization performance, it is also suitable for use in high positions easily influenced by strong winds and in other locations where significant vibrations are likely such as beside highways or in airports.

This functionality enables the camera to provide consistent, stable images even when used at long range settings, where the influence of any vibrations is magnified.

High-speed AF System

On-sensor phase detection AF:  The on-sensor phase detection AF uses phase detection pixels across the sensor to instantaneously measure distance according to the displacement of incident lights. The SX800 also offers “contrast AF,” which detects areas of high contrast in images at high accuracy, and automatically switches to the optimum AF setting.

Rear Focus mechanism: The use of the Rear Focus mechanism has significantly reduced the weight of the focusing lens group. This has also dramatically increased the focus drive speed to enable “continuous AF.” Users can choose between “Continuous AF,” “Quick AF” and “Manual Focus” according to the conditions where the camera is used.

Image processing technology

Low light conditions:  The use of the highly sensitive sensor and the effect of advanced noise reduction mean the SX800 can shoot clear footage with minimal noise even in low light conditions.

Fog reduction:  The SX800 uses a unique imaging technology to bring vivid clarity to hazy images caused by light diffusion with airborne mist droplets and dust.

Heat Haze reduction:  The SX800 uses a unique image processing technology to reduce the shimmering effect of heat haze, caused by large difference in atmospheric temperatures, to make the entire images easier to see.

Simplified setup

Cameras with built-in lens

Conventional surveillance systems require the adjustment of optical axis and flange focal length when mounting a lens on a camera. The SX800, which carries a built-in lens, is shipped with such settings optimally adjusted to bring out maximum performance. The design also eliminates the need for complicated wiring, thereby significantly reducing man-hours at the time of installation.

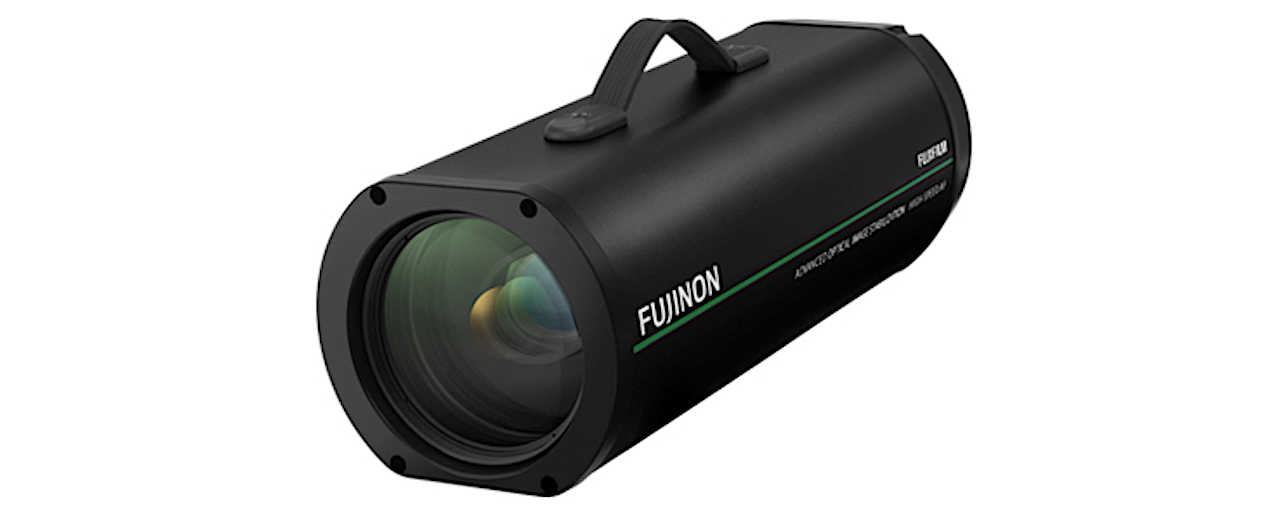

Robustness

New design with advanced rigidity and portability

The SX800’s aluminum extrusion body is highly rigid and exceptionally robust. A carrying handle* may be attached to the body, using screw holes at the top, for transporting convenience.

* FUJIFILM does not offer a carrying handle.
