SGL-HS603BF, Bluetooth, Card, Fingerprint, Pin, Drawer / Cabinet Lock

SGL-HS603BF, Bluetooth, Card, Fingerprint, Pin, Drawer / Cabinet Lock

SGL-BS603 is the world's most advanced bluetooth smart lock.

The lock can be easily install to any cabinet, cover or drawer. No key or other tool required to open. Phone and tablet app is now your key. It can also be used with fingerprint, mifare cards and pin. All you have to do is install the application and find the lock with automatic search. After initial authorization, you can set the lock so that only your phone, fingerprint, card or password can be unlocked by us.

When the battery is completely discharged, a portable charger (powerbank) or another 5VDC power supply with Type-C socket can be connected and it can be powered by external energy.

Features

• Suitable for Drawers, Cabinets and Closets

• Robust ABS Plastic Body
• Connection over Bluetooth, Works up to 10m
• Works with Bluetooth, Fingerprint, Mifare Card and PIN

• Powered by 1 Piece CR123A Battery (Battery not included)
• Provides 1 Year or 1000 Openings with a Fully Charged Battery
• Emergency Power Input (Type-C)

• Lock Body Dimensions: 63x58x20mm, Reader Body: 69x54x13mm

• Weight 100gr (Without Battery)
• 45 User Capacity
• Life up to 100,000 open

You can use it in cabinets, drawers and cabinets that you do not want to be opened by unauthorized persons in areas such as homes, offices, factories, hospitals, pharmacies.

Benefits

• Due to its small size, it can be installed even in the narrow spaces. The lock body is only 63x58x20mm.

• It can be opened 1000 times with a fully charged battery.
• It prevents the lock from being left open by locking back automatically.
• It gives a low battery warning when the battery is almost empty.
• It can be set to turn on automatically when the battery runs out from the application (This setting is off from the factory).
• It can be mounted at 90° and 180° angles. Thus, it can be used on both sliding doors and opening doors.
• Thanks to the push spring in the lock counter, the covers are pushed out after they are opened (Cover weight can prevent this situation).
• People who have an account can be authorized to unlock through the application.Fingerprint, mifare card, password can be added to each user on a user basis, as well as the authorization to unlock via the phone application. The user can use any of these unlocking modes.

App Links

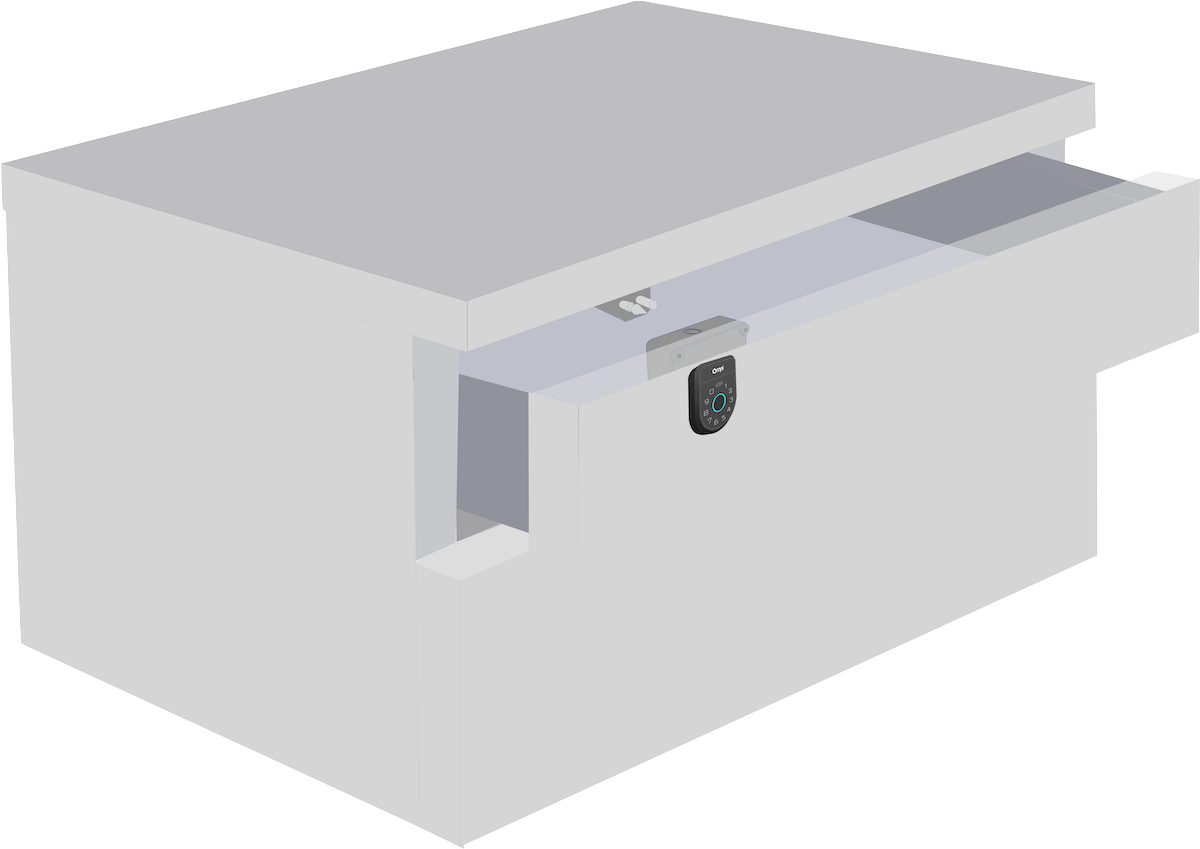

Assembly Examples

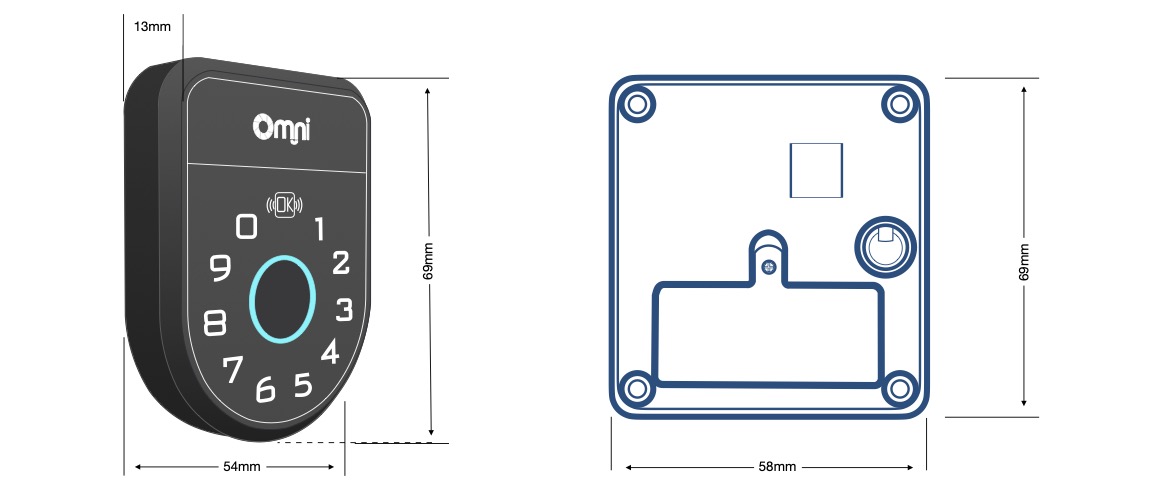

Dimensions
