SGC-SP5C41, Flush-mount NO Magnetic Contact
Hot
SGC-SP5C41, Flush-mount NO Magnetic Contact
- Stock Status: In Stock
- Brand: SECURITURK
- Model: SGC-SP5C41
- Weight: 15.00g
- Dimensions: 31.00mm x 19.00mm x 19.00mm
- SKU: SGC-SP5C41
- HS CODE: 85051900
- MPN: SGC-SP5C41
SGC-SP5C41, Flush-mount NO Magnetic Contact
SGC-SP5C41 is a high quality magnetic contact that is generally used in alarm systems and access control systems.
The SGC-SP5C41 is a normally open magnetic contact (Form B). It is manufactured to be short-circuited when the magnet is far away. When the magnet is near the contact, the circuit is cut off.
The cable is in the jacket and its length is 30 cm.
Power |
20W |
Voltage (DC) |
30V |
Current (DC) |
2A |
Impedance (En Yüksek) |
1Ω |
Switch Form |
Form B |
Withstand Voltage(DC) |
250V |
Operating Distance(mm) |
13 |
Fixing Mode |
Screw |
Shock Resistance |
30G |
Mechanical Life |
10⁸ |
Operating Environment |
-10℃~+60℃ |
Safety Standard (UL) |
94-HB |
Body Color |
Brown |

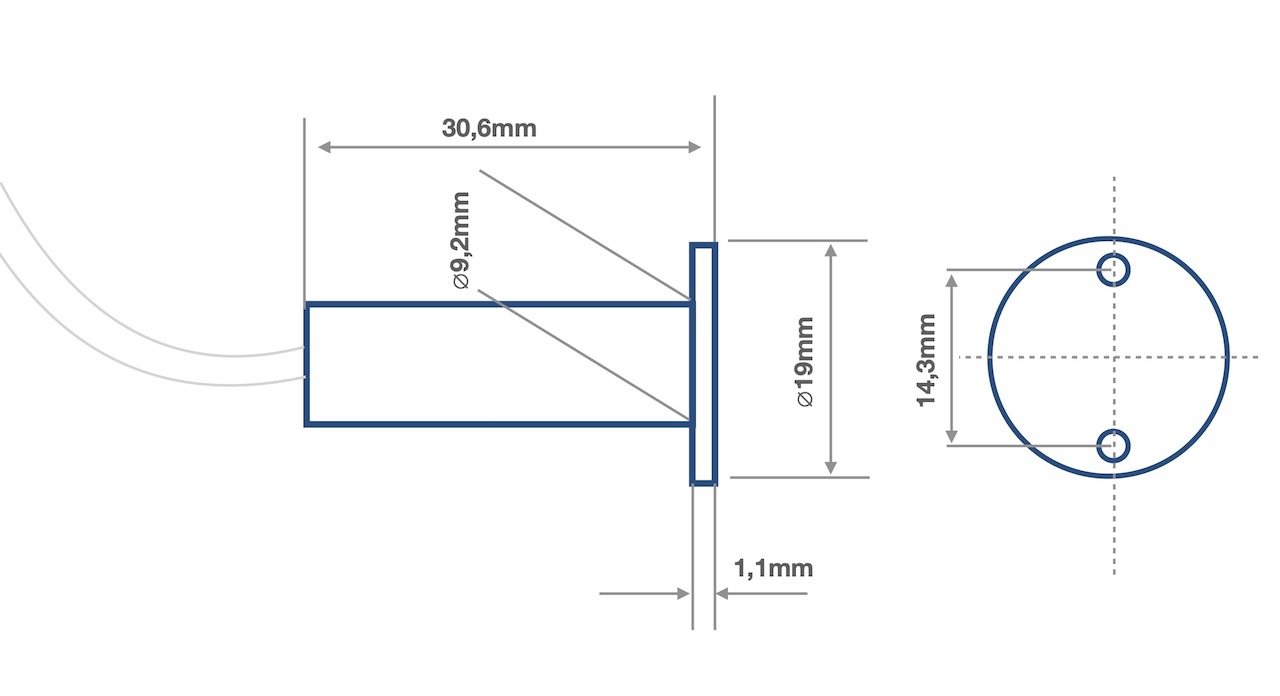

Dimensions (mm)
AS Product Class | |
Product Type | Magnetic Contact |
Detector Specifications | |
Sensor Operation | Dry Contact |
Magnetic Contact Specifications | |
Contact Type | NO |
Detection Distance | 13mm |
Mounting Type | Flush |
Communication Type | Wired |
