PNV-A6081R-E1T, 2MP Camera with built-in 1TB Rugged SSD

PNV-A6081R-E1T, 2MP Camera with built-in 1TB Rugged SSD

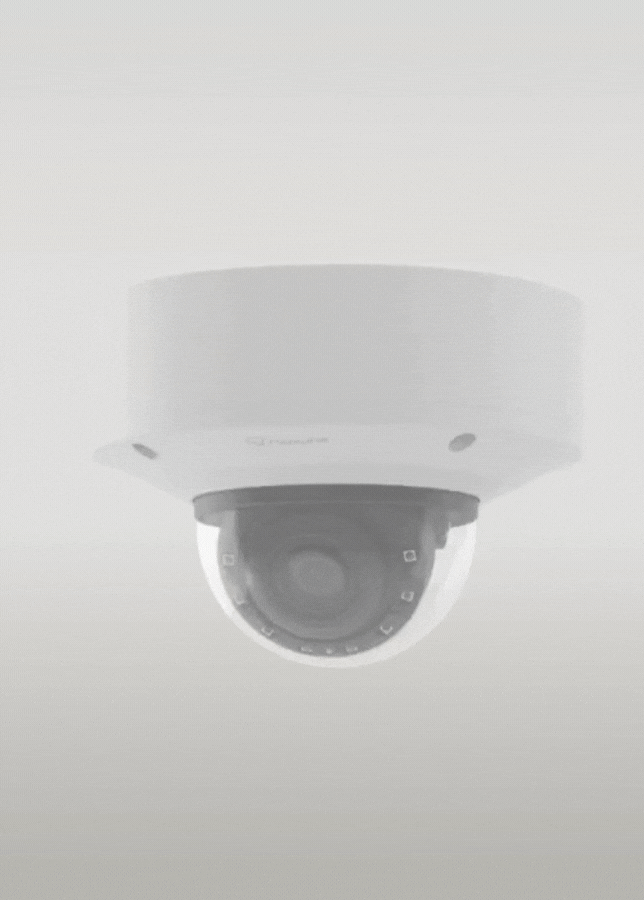

PNV-A6081R-E1T is the latest AI Wisenet camera format with dome design and many other smart features. This camera is ideal for server-less solutions with its internal 1TB SSD storage.

With the SolidEdge function, it saves the images of 6 cameras, including itself, to the 1TB SSD on it. The camera comes with 1 channel Wisenet Wave licensed. It can record a total of 6 cameras on the SSD storage area by obtaining a license to other cameras*. Thus, a system can be designed without the need for an NVR or server.

Main Features

• Maximum 2MP resolution, Up to 120fps
• Color: 0.008Lux (F1.3, 1/30sec, 30IRE), BW: 0.0008Lux (F1.3, 1/30sec, 30IRE)
• Day&Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• SSD 1TB included (WAVE pre-installed)
• Video Analytics based on AI
• Object detection and classification (Person, Face, Vehicle, License Plate)
• Face mask detection, Social distancing detection
• Support Attributes, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• Hard-coated dome bubble
• IP66, IP67, IP6K9K, IK10, NEMA4X

* The number of cameras to be recorded can be limited when using AI functions.

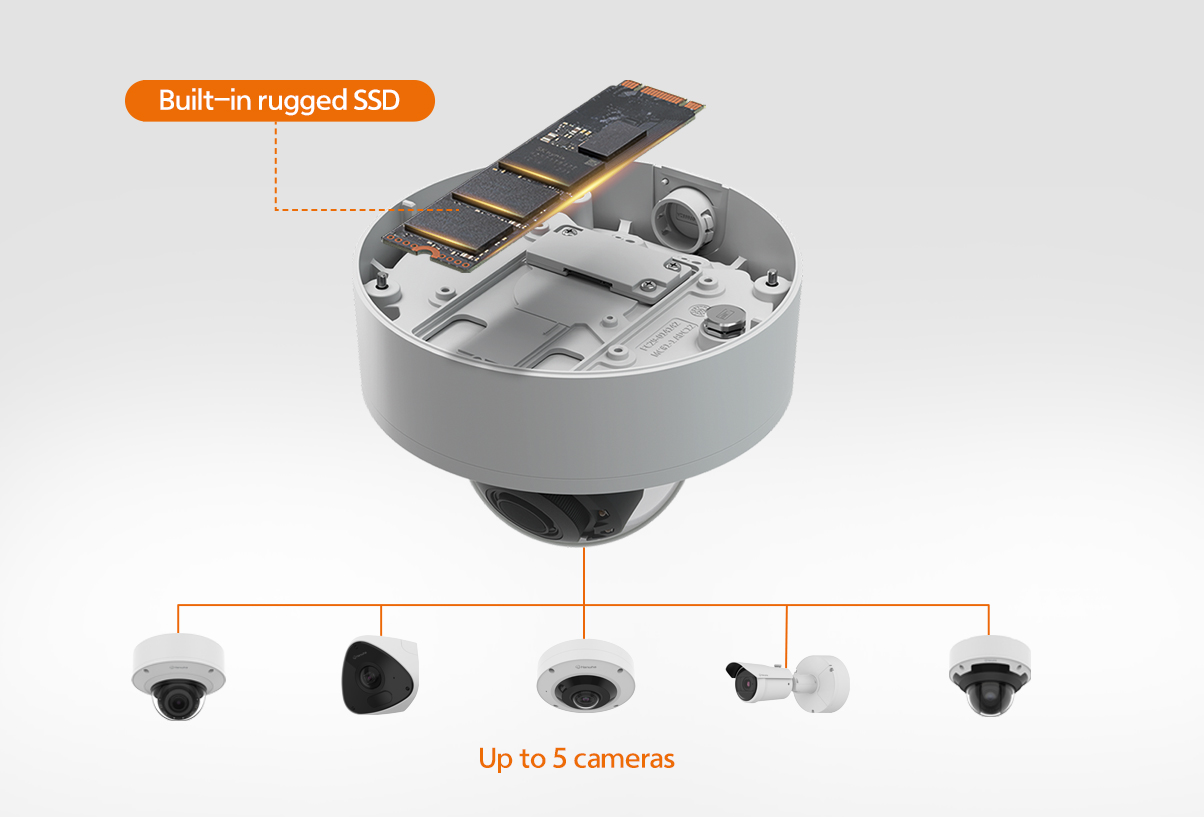

Server-less solution with built-in rugged SSD

Conventional video surveillance systems require servers to record and manage cameras. SolidEDGE is a server-less solution equipped with a built-in rugged SSD that enables local storage of video footage and eliminating the need for external recording servers.

Up to 5 additional cameras recording and monitoring

Users can add up to five additional cameras to the single SolidEDGE camera.

Total of six cameras including SolidEDGE camera can record and monitor up to six video channels and therefore making it suitable for the SMB market such as coffee shops, restaurants and bakeries.

SolidEDGE includes 1ch Wisenet WAVE license so users only need to purchase a VMS license for each additional camera.

System scalability

SolidEDGE could be flexible and expandable for multi-site monitoring through Wisenet WAVE Sync. This feature enables remote access and management of on-premise security systems from anywhere in the world. Wisenet Wave Sync also keeps the system up-to-date with regular software and security updates.

Wisenet 7 ChipCombines The Technology To See With The Intelligence To Understand

With Wisenet 7 Chip, cameras are now starting to recognize objects. They can describe what is in the image as distinguishable and searchable objects.
With the artificial intelligence Wisenet AI cameras, the objects in the image can be classified, their movements can be perceived, the data related to a particular piece can be recorded and searched as metadata.
In this way, you can say "there is no restriction on pedestrian crossing but the vehicles cannot cross in that direction". Or you can search on the central Video Management Software to find people in the image, people with glasses, etc.

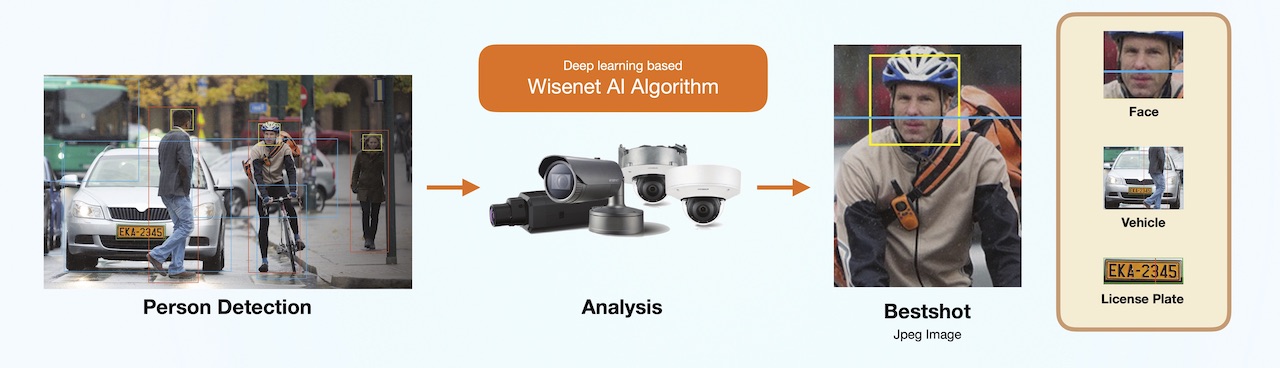

New deep learning based technology

False alarm reduction through Wisenet’s deep learning based algorithm, which supports object classification. It can discard waving trees, video noise, raining, moving shadow, irreverent objects (dog, plastic bag, etc).

New Object Detection

• New event based on the AI algorithm
• Detection of four object types simultaneously (Person/Vehicle/Face/License plate)
• Real-time event trigger (new SUNAPI protocol)

Attributes for forensic search

• AI camera sends metadata including attributes of objects, coordinates information and setting value to backend server
• Person, Face, Vehicle category and so on

Real-time object Image capture for re-identification

• BestShot: Best crop image of “Person, Vehicle, Face, License plate” in the scene
• JPEG snapshot type, select option
• This function helps to load distribution of backend server
• Useful with license plate analyzing or face analyzing server
