PNM-C32083RVQ, 32MP (4K x 4) Multi-Sensor, AI, Multi-Directional Camera

PNM-C32083RVQ, 32MP (4K x 4) Multi-Sensor, AI, Multi-Directional Camera

PNM-C32083RVQ provides analysis events based on the artificial intelligence engine in a 360° perspective: In addition to object detection and object classification (Person/Face/Vehicle/License Plate), it also produces information about the attributes of objects. In this way, users can search within recorded images by specifying an object or the attribute that identifies the object. For example, people in red shirts.

The camera is providing total resolution of 32MP with 4x 4K sensors for a . Each camera head features 15fps(AI On), a motorized vari-focal lens 1.7x (3.3~5.7mm) (100°~53°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built-in analytics, true D/N, 4x SD card slots, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, hPoE and PoE+ (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F) is other features of camera.

KEY BENEFITS

·       Analytics events based on AI engine provide object classification and object attributes for search.

·       AI based loitering detection and line crossing detection is reducing false alarms.

·       Easier and quicker to install, removing the need to adjust the lenses at the installation phase

·       Reduces costs, using one device instead of 4 separate ones, one VMS license and one cable connection

·       Better quality and clearer images

·       Better performance with multiple stream profiles and smart encoding

·       Perfect for outdoor usage, with vandal resistant and weatherproof certifications

·       Better incident response with both video and audio capabilities

KEY FEATURES

·       360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)

      ·       360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
      ·       AI based loitering detection and line crossing detection
      ·       AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
      ·       Compact size & semi-modular design
      ·       Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)

       ·       Reinforced durability (IP66, IK10, NEMA4X)5MP x 4ch Multi-directional camera, Total 32MP

·       Motorized PTRZ control

·       3.3~5.7mm (1.7X) motorized varifocal lens

·       IR viewable length : 15m

·       Max. 15fps@4K (H.265, H.264)(AI on), Max. 20fps (AI Off)

·       H.265, H.264, MJPEG Codec, Multi Streaming

·       Advanced Video analytics

·       Wide dynamic range (WDR) of 120dB

·       Defog and noise reduction

·       Lens distortion correction (LDC)

·       Digital image stabilisation (DIS)

·       Full frame steaming up to 2 profiles for each channel

·       Hallway view support

·       WiseStreamⅡ smart encoding

·       Bi-directional Audio

·       IP66, IK10, NEMA4X

·       PoE+(IEEE802.3at Type2, Class4), 25,5W, HPoE(IEEE802.3bt Type3, Class6), Max 33.0W, typical 22.0W

AI based object detectIon and classIfIcatIon

The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

4CH AI MultI-dIrectIonal camera feature set

The new 4CH AI Multi-directional camera has four independent IR zones. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby objects.

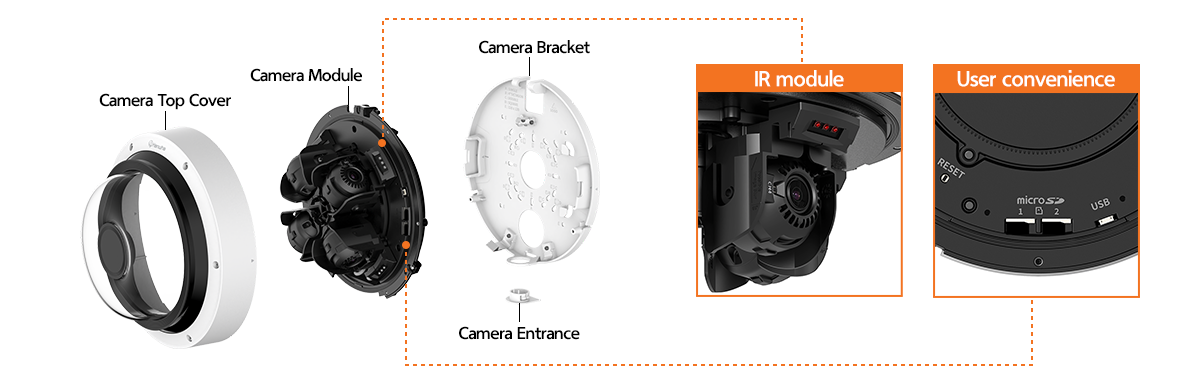

Compact sIze and semI-modular desIgn

The new 4CH AI Multi-directional camera provides an intuitive installation. microSD card and reset button are supported by unscrewing one cover and 4CH AI Multi-directional camera design includes an integrated installation plate with gang-box compatibility. Integrated installation plate with Gang box compatibility and ¾” conduit entrance for quick and easy installation.

FOUR CAMERAS IN ONE

Multi-directional camera PNM-C32083RVQ has four sensors/lenses in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making it ideal for wide areas while reducing costs.

OPTIMIZED FOR INDOOR AND OUTDOOR

PNM-C32083RVQ is suitable to monitor even the smallest details in a wide area. It is ideal for indoor applications such as warehouse, shopping malls, train stations – as well as outdoor applications such as parking lots, crossroads, city areas and more – supporting IP66 and IK10.

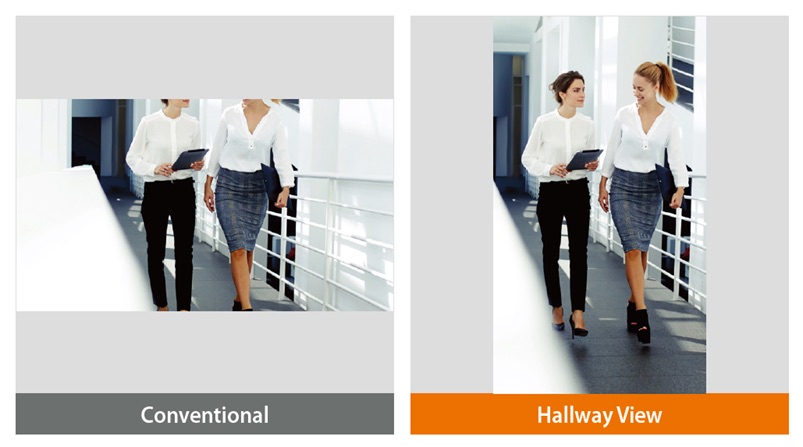

HALLWAY VIEW

In a vertical shaped environment, such as corridors, hallways, tunnels, or aisles, traditional horizontal shaped videos focus on not usable edges of the area causing bandwidth and storage waste. The Hallway view creates 3:4 and 9:16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

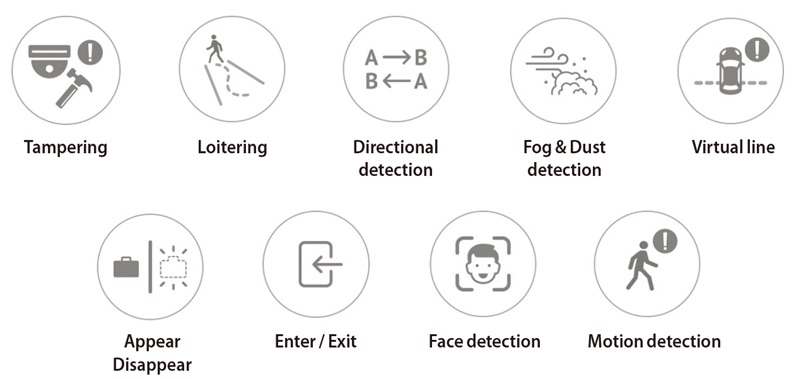

COMPREHENSIVE RANGE OF INTELLIGENT ANALYTICS

PNM-C32083RVQ supports a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.

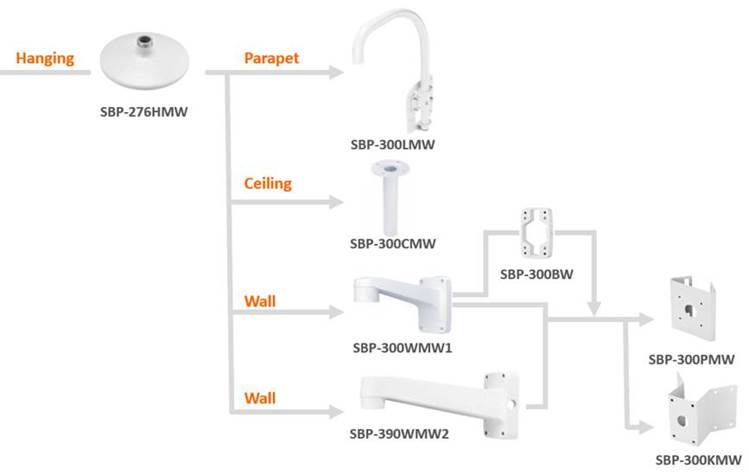

COMPATIBLE ACCESSORIES
