PNM-9320VQ, 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ

Name: PNM-9320VQ, 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ
Brand: WISENET
SKU: PNM-9320VQ
Price: 5694.00 USD
Availability: OutOfStock

Shipping in 4-6 Weeks

PNM-9320VQ, 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ

Astors Award Platinum Winner 2019

This product, won the Platinum award in the Best IP Video Surveillance Solution category of American Security Today 2019.

Stock Status: Shipping in 4-6 Weeks
Brand: WISENET
Model: PNM-9320VQ
Weight: 7,050.00g
Dimensions: 367.80mm x 367.80mm x 381.50mm
SKU: PNM-9320VQ
UPC: 880108914427
EAN: 8801089146779
JAN: 8525809190
HS CODE: 8525809190
MPN: PNM-9320VQ

Based on 0 reviews. - Write a review

Available Options

PNM-9320VQP Lens Selection

SLA-5M7000P: 5MP, 7mm Lens Camera Module, 50.7°

SLA-5M4600P: 5MP, 4,6mm Lens Camera Module, 77.9°

SLA-5M3700P: 5MP, 3,7mm Lens Camera Module, 97.5°

SLA-2M6000P: 2MP, 6mm Lens Camera Module, 50.4°

SLA-2M3600P: 2MP, 3,6mm Lens Camera Module, 94.8°

SLA-2M2800P: 2MP, 2,8mm Lens Camera Module, 107.4°

SLA-2M2400P: 2MP, 2,4mm Lens Camera Module, 135.4°

SLA-2M1200P: 2MP, 12mm Lens Camera Module, 26.3°

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

PNM-9320VQ, 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ

Never miss a thing

Wisenet Multi Directional + PTZ Camera
PNM-9320VQP

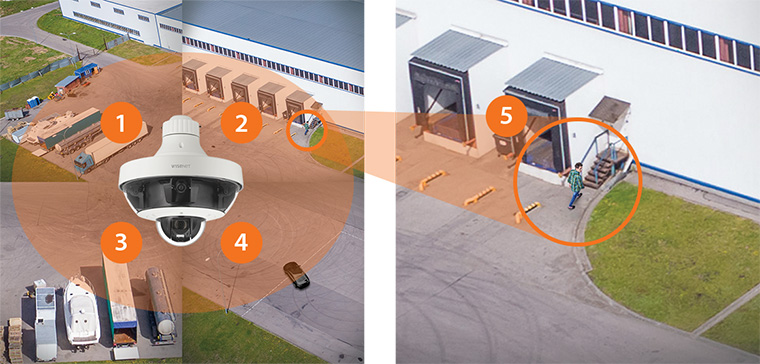

4 + 1 cameras in one

Multi-directional plus PTZ camera has five sensors in one camera. When using the camera you can monitor a 360° wide area simultaneously with multi-directional camera while the PTZ camera zooms into the desired area for closer inspection. The four sensors in the multi-directional camera move independently of one another.

Advance handover to PTZ

When the multi-directional camera detects an event, it automatically links to PTZ camera which carries out zoom-in and track functions. When using preset mode, PTZ camera zooms in to the position that the users preset, while smart zoom mode automatically zooms into the area where event is detected.

Improve bandwidth by up to 99% using WiseStream II

When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

True WDR (150dB with 2 MP and 120dB with 5MP)

Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

Hallway View

In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

A comprehensive range of intelligent video analytics

Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.

* Supported video analytics may vary depending on the camera.

Selectable and replaceable camera lens modules (PNM-9320VQP only)

Users can choose a wide variety of lenses from 2M 2.4mm to 5M 7.0mm for PNM-9320VQP to create the most optimal field of view for their desired monitoring areas. Choose the 4 lenses of your choice and create a combination of lens module up to 20MP resolution for multi-directional camera..

1/2.8” 2M CMOS


Lens	SLA-2M2400P	SLA-2M2800P	SLA-2M3600P
Focal Length (Zoom Ratio)	2.4mm	2.8mm	3.6mm
Angular Field of View	H : 135.4˚ V : 71.2˚ D : 161.6˚	H : 107.4˚ V : 62.2˚ D : 122.0˚	H : 94.8˚ V : 49.3˚ D : 114.3˚


Lens	SLA-2M6000P	SLA-2M1200P
Focal Length (Zoom Ratio)	6mm	12mm
Angular Field of View	H : 50.4˚ V : 28.8˚ D : 58.1˚	H : 26.3˚ V : 14.9˚ D : 30.0˚

1/1.8” 5M CMOS


Lens	SLA-5M3700P	SLA-5M4600P	SLA-5M7000P
Focal Length (Zoom Ratio)	3.7mm	4.6mm	7.0mm
Angular Field of View	H : 97.5˚ V : 71.9˚ D : 126.2˚	H : 77.9˚ V : 57.9˚ D : 98.7˚	H : 50.7˚ V : 37.8˚ D : 63.8˚

Classification
Product Type	Camera
Operation Type	Network (IP)
Production Series	P Series
Camera Specifications
Resolution (Megapixels)	22MP (4x5MP+1x2MP)
Camera Type	Multidirectional
Power Option	HPoE
WDR Function	150dB
Shutter Speed (fps)	30 / 60
Protection Class	IP66
Outdoor?	Yes.
Day and Night Function	True Day Night
Extra Function	4 Camera 360˚ Viewing Angle
Camera Lens Type	4xFixed + 32X Zoom Lens

In the pre-order system;

We obtain your products from the manufacturer / distributor in the fastest way and send them to your address.

Products in stock are sent to you directly by the distributor company distributor in Turkey the same day.
Products in the stock of foreign distributors / producers are shipped within 4 weeks.

If the product is not available, your payment will be refunded.

Tags: PNM-9320VQP , 5 Channel , 4x 2MP / 5MP + 2MP , 32x , PTZ , Wisenet
