PNM-9084QZ1, 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera

PNM-9084QZ1, 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera

Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 4x 2MP sensors for a total resolution of 8MP. Each camera head features 60fps, a motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built-in analytics, true D/N, 4x SD card slots, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.

KEY BENEFITS

·       Easier and quicker to install, removing the need to adjust the lenses at the installation phase

·       Reduces costs, using one device instead of 4 separate ones, one VMS license and one cable connection

·       Better quality and clearer images

·       Better performance with multiple stream profiles and smart encoding

·       Perfect for outdoor usage, with vandal resistant and weatherproof certifications

·       Better incident response with both video and audio capabilities

KEY FEATURES

·       2MP x 4ch Multi-directional camera

·       Motorized PTRZ control

·       3.0~6.0mm (2x) motorized varifocal lens

·       Max. 60fps@2M (H.265, H.264), Max. 30fps@2M (MJPEG)

·       H.265, H.264, MJPEG codec, Multi streaming

·       Advanced Video analytics

·       Wide dynamic range (WDR) of 120dB

·       Defog and noise reduction

·       Lens distortion correction (LDC)

·       Digital image stabilisation (DIS)

·       Full frame steaming up to 2 profiles for each channel

·       Hallway view support

·       WiseStreamⅡ smart encoding

·       Bi-directional Audio

·       A new “doughnut” shape design, white colour

·       IP66, IK10, NEMA4X

·       HPoE

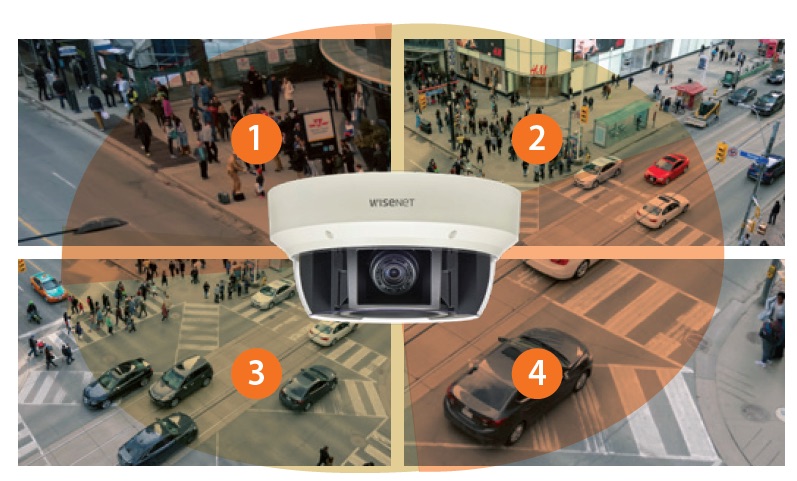

FOUR CAMERAS IN ONE

Multi-directional camera PNM-9084QZ1 has four sensors/lenses in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making it ideal for wide areas while reducing costs.

OPTIMIZED FOR INDOOR AND OUTDOOR

PNM-9084QZ1 is suitable to monitor even the smallest details in a wide area. It is ideal for indoor applications such as warehouse, shopping malls, train stations – as well as outdoor applications such as parking lots, crossroads, city areas and more – supporting IP66 and IK10.

HALLWAY VIEW

In a vertical shaped environment, such as corridors, hallways, tunnels, or aisles, traditional horizontal shaped videos focus on not usable edges of the area causing bandwidth and storage waste. The Hallway view creates 3:4 and 9:16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

COMPREHENSIVE RANGE OF INTELLIGENT ANALYTICS

PNM-9084QZ1 supports a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
