KR-S80A, Electronic Drawer Cabinet Lock with Card Reader
Out Of Stock
KR-S80A, Electronic Drawer Cabinet Lock with Card Reader
- Stock Status: Out Of Stock
- Brand: SECURITURK
- Model: KR-S80A
- Weight: 220.00g
- Dimensions: 80.00mm x 80.00mm x 28.00mm
- SKU: KR-S80A
- HS CODE: 83013000
- MPN: KR-S80A
KR-S80A, Electronic Drawer Cabinet Lock with Card Reader

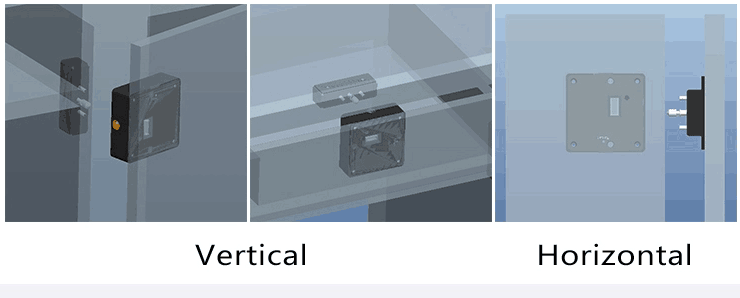

The KR-S80A is a furniture lock with card reader that can be used for doors, drawers and sliding doors. The KR-S80A is a hidden lock as it is not visible from the outside. It works with standard 13.56MHz Mifare cards, keychain-shaped 13.56MHz Mifare cards, bracelet-shaped 13.56MHz Mifare cards. The lock is unlocked when the user brings the card closer to the place where the lock is.
The reading distance of the card is 35mm. Therefore, it can be used in 18mm furniture without any problems.
Applications:
- Lockers
- Drawers
- Sliding doors
Technology:
- 13.56MHz Mifare Type Card, Keychain Operated (ISO/IEC 14443)
- Up to 50 cards or key fobs can be registered, including 30 Users, 10 Administrators, and 10 delete cards.
- The lock can be used in several different modes.
- Private Mode: Pre-registered cards can unlock. Other than that, no card can open the lock.
- After the user leaves his belongings and closes the cabinet or drawer. The lock is locked automatically.
- Public Mode: Only the administrator card or cards are registered. Other cards are not register.
- The cabinet/drawer and hence the lock are normally open.
- The user who will use the cabinet / drawer puts his belongings inside, closes the cover and locks it by swiping his card.
- From this moment on, only the card used to lock or the manager card can open the lock. Other cards cannot unlock the lock.
- When the user who put the item comes back and reads the same card, the lock is unlock and user takes item.
- Leaves cabinet/drawer open.
- Limited Public Mode:
- In this mode, the user opens the locker with their card.
- User takes his stuff and closes the cover.
- Since the lock will not be locked without swiping the card again, it stays open.
- When the user finishes use, swipe card again and locks the cabinet.
- Breaking point 55 kg-f
- Works with 4 pieces AAA Battery. It starts to warn when the battery voltage drops below 4.5V.
- It can also be powered by an adapter using the micro USB input.
