Zoom Infrared Lighting



With the growing demand for moving cameras with infrared illumination, more infrared leds are needed for close-ups of distant subjects. Infrared Zoom technology moves the lens to focus more light on distant subjects through a set of lenses in front of the leds as the camera zooms. The infrared illumination angle is narrowed, the leds are focused on the distant stage and brighter images are obtained.

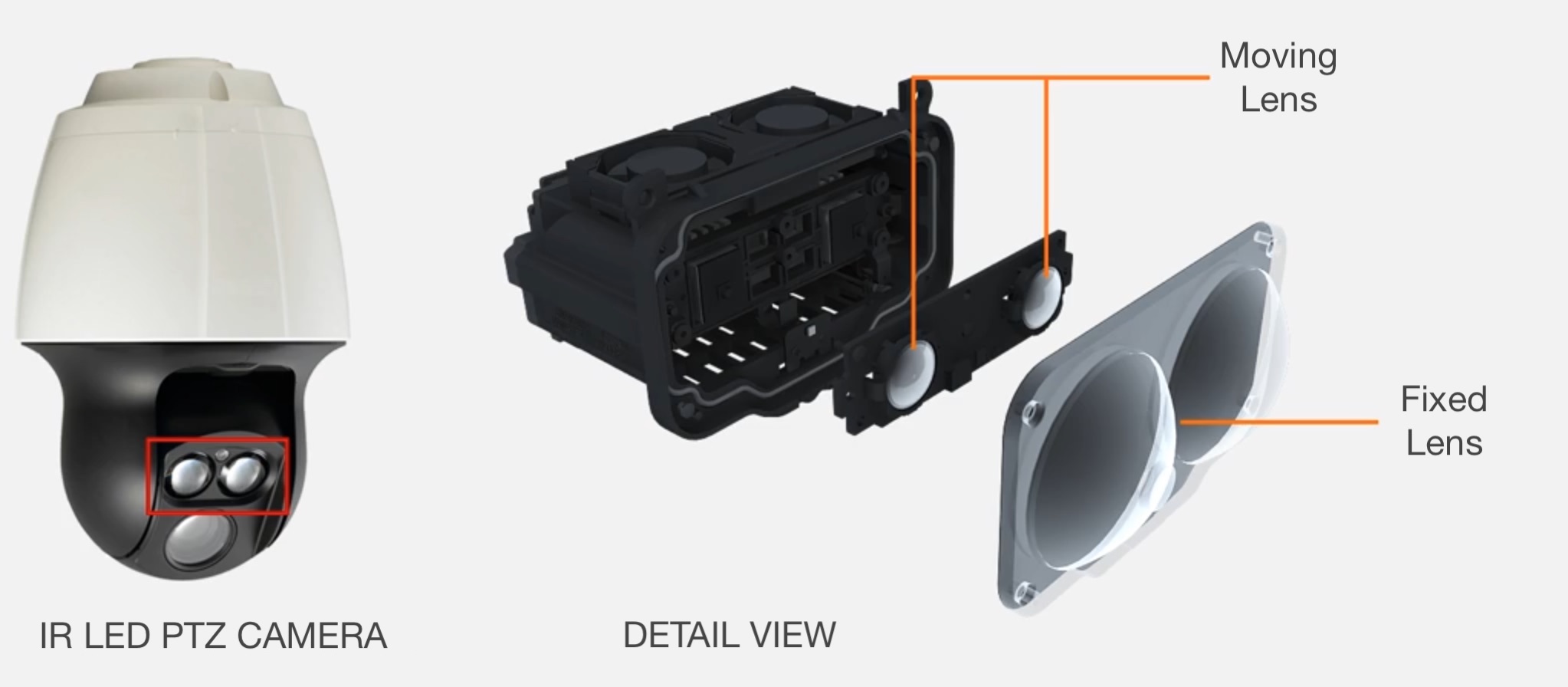

Adjustment of Lighting Angle of LEDs

If the leds are close to the large lens, a wide angle illumination is obtained. While the camera is in wide-angle shooting, the leds are also close to the large lens. This results in a wide illumination when the camera is at a wide angle. When the camera starts zooming, the moving lens behind the fixed lens retracts at the same rate as the zoom, and the angle of the leds begins to narrow. Thus, the angle of exposure of the camera and the angle of illumination are equalized.



Saturation
The saturation phenomenon towards the center of the screen is further reduced compared to other products on the market. In wide-angle shots, the brightness is matched.
XNP-6370RH, XNP-6371RH, XNP-6550RH, PNP-9200RH

Saturation Balancing

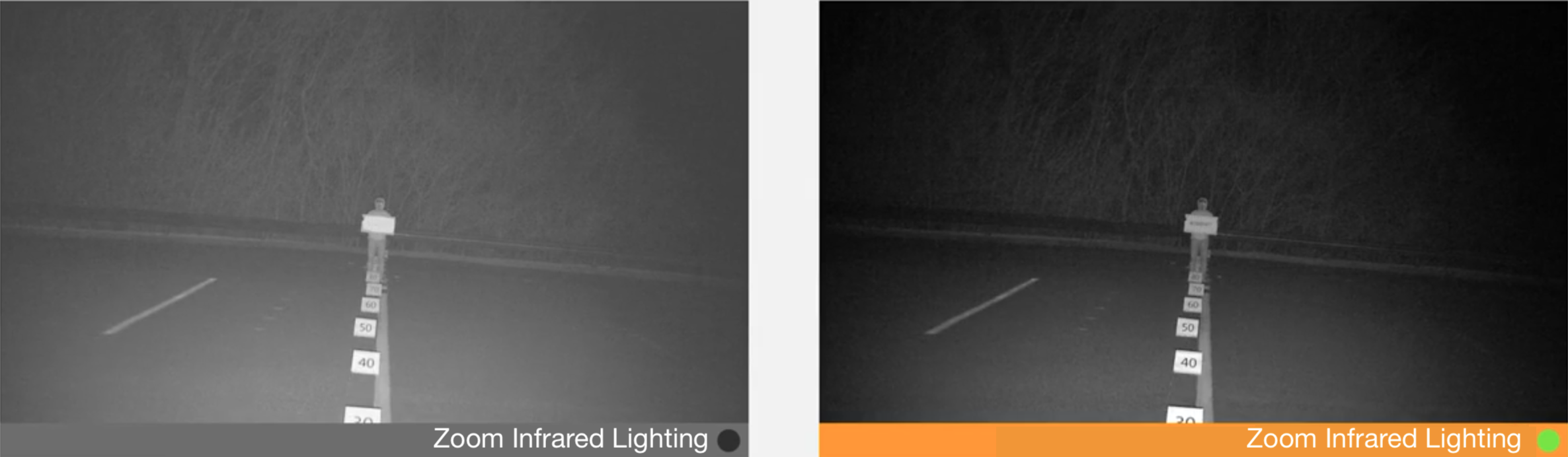

Zoom Lighting

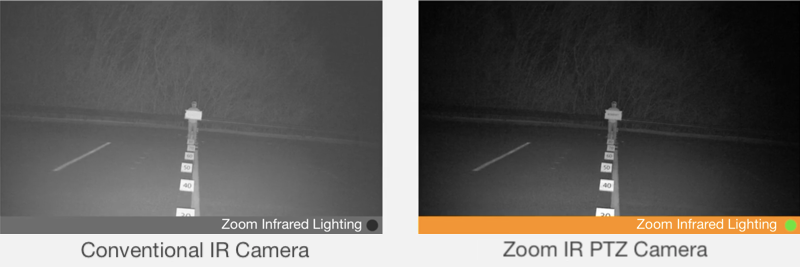

When the camera zoom long distances, the focusing LEDs illuminate longer distances better. This results in brighter images than conventional products.




Yakınlaştırma durumundaki aydınlatma

To watch the full video:  https://www.youtube.com/watch?v=PEVBtJSUID8
